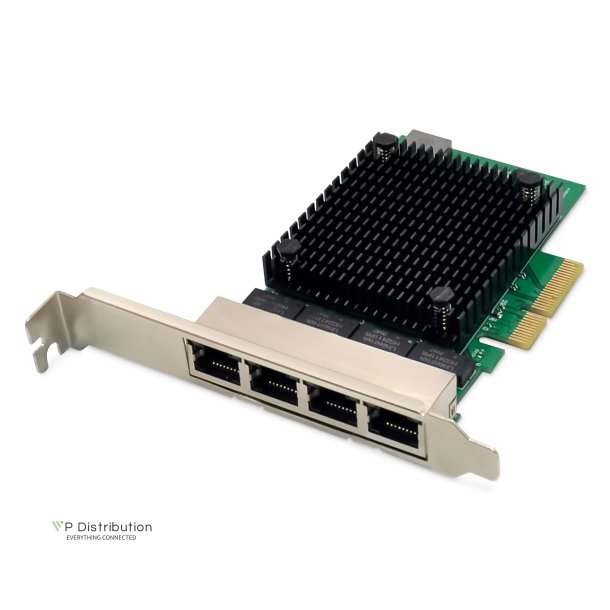

Digitus 4 Port RJ45 RTL8125B 2,5 GBits Server NIC

Digitus 4 Port RJ45 RTL8125B 2,5 GBits Server NIC

Du skal være logget ind for at kunne lave bestillinger

Varenr.: DN-10136
Leveringstid: Cirka. 2-4 dage i leveringstid
The DN-10136 PCIe Quad-Port 2.5G network adapter is realized by the combination of multiple chips, it is combines a four-speed IEEE802.3 compatible Media Access controller with a four-speed Ethernet transceiver, it is complies with the IEEE802.3u specification for 10/100Mbps Ethernet ,the IEEE802.3ab specification for 1000Mbps Ethernet and IEEE802.3bz specification for 2500 Mbps Ethernet. Also it offers high-speed transmission over CAT5e UTP cable OR CAT3 UTP(10Mbps only)cable .It is suitable for multiple market segments and emerging applications, such as desktop, workstation, server, communications platforms, and embedded applications.
  • Beskrivelse
    • Support PCI Express Specification Revision 2.1 • 2-Lane PCI Express bus connecting with up to 10Gbps bus width • PCI Express interface: x4 • Integrated 10M BASE-Te and 100/1000M/2.5G base-T 802.3 compatible transceiver • Supports 2.5G and 1G Lite mode • Auto-Negotiation with Extended Next Page capability(XNP) • Supports pair swap/polarity/skew correction • Crossover Detection& Auto-Correction • Supports 1-Lane 2.5/5Gbps PCI Express Bus • Supports hardware ECC(Error correction code)function • Supports hardware CRC(Cyclic Redundancy Check)function • Supports PCI MSI (Message Signaled Interrupt)and MSI-X • Transmit/Receive on-chip buffer support • Supports ECMA-393 ProxZzzy Standard for sleeping hosts • Wake-On-LAN and ‘RealWow!’ Technology (remote wake-up)supports • Compatible with IEEE802.3,IEEE802.3u,IEEE802.3ab • Supports IEEE1588v1,IEEE1588v2,IEEE80.2AS time synchronization • Supports IEEE802.1Qav credit-based shaper algorithm • Supports IEEE802.1P Layer 2 Priority encoding • Supports IEEE802.1Q VLan tagging • Supports IEEE802.1ad Double VLAN • Supports IEEE802.3az (Energy Efficient Ethernet) • Supports IEEE802.3bz(2.5GBase-T) • Supports full duplex flow control(IEEE802.3x) • Supports jumbo frame to 16K bytes • Supports Virtual Machine Queue(VMQ) • Supports quad core Receive –Side Scaling(RSS) • Supports Protocol Offload (ARP&NS) • Drivers for Vista /Win7 / Win8 / Win10 /Win11/ Sever2008 / Sever 2012 / Linux / DOS • Chipset: RTL8125B+ASM1806
