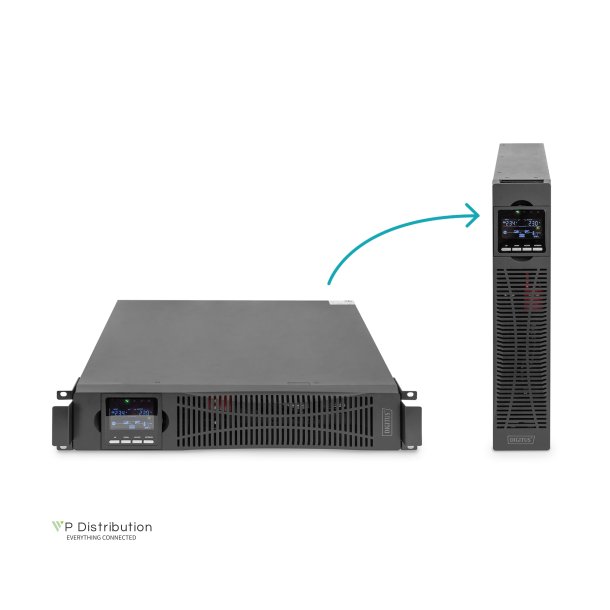

Digitus OnLine UPS Module, 1000VA/1000W

Digitus OnLine UPS Module, 1000VA/1000W

Du skal være logget ind for at kunne lave bestillinger

Varenr.: DN-170093
Leveringstid: Cirka. 2-4 dage i leveringstid
The DIGITUS® OnLine UPS is a double-conversion UPS solution that provides best-in-class power failure protection and continuous power generation in a compact and flexible system. The single-phase UPS operates with high energy efficiency and is ideal for protecting critical infrastructure in both centralized and edge network applications. Scalable runtime options with matching external battery cabinets provide additional flexibility when extended uninterruptible power is required. The user-friendly LCD display and network management capability, including configuration, make this system easy to install and maintain. With market-leading efficiency and consistent power factor, the UPS meets your critical application needs.
  • Beskrivelse
    • Installation: Desktop, Rack • Plug: IEC 60320 C14 inlet • Power: 1500VA – 3000VA • Technology: Online double conversion • Inch form factor (IEC 60297): 482.6 mm (19") • Online double conversion system (VFI-SS-111) • Input: socket IEC60320 C14, 208/220/230/240 Vac • Output: 8 x IEC60320 C13, max. 10A per socket • System power rating: 1000 VA / 1000 W, power factor 1.0 • AC-AC (online VFI) efficiency: 93 %, ECO mode efficiency: 98 %. • Replaceable internal battery pack during operation. • Battery: valve-regulated, non-spillable lead-acid battery. • Battery capacity: 2 x 12V x 9.0 Ah • Charge: 4 hours to 90% capacity after fully discharged • Network connection: Optional SNMP/Webcard (part number DN-170100) allows remote monitoring of the UPS. • Local communication ports: USB, RS-232 (serial), SNMP card (optional), relay card (optional) • Emergency power-off (EPO) contact for UPS shutdown in case of emergency • Maximum operating temperature: 0 - 40 °C • Storage temperature: -25 - 55 °C • Relative humidity: 20 - 90% non-condensing • Operating altitude: < 1500 m • Product dimensions WxDxH (mm): 440 (19") x 325 x 86.5 (2U) • Product weight: 11,3 kg • Shipping dimensions WxDxH (mm): 560 x 455 x 200 • Shipping weight: 15,5 kg • Safety standards: IEC/EN62040-1,IEC/EN60950-1 • EMC standards: IEC/EN62040-2,IEC61000-4-2,IEC61000-4-3,IEC61000-4-4, IEC61000-4-5,IEC61000-4-6,IEC61000-4-8 • Optional available: 19" UPS mounting kit (profile rails), part number DN-170109
