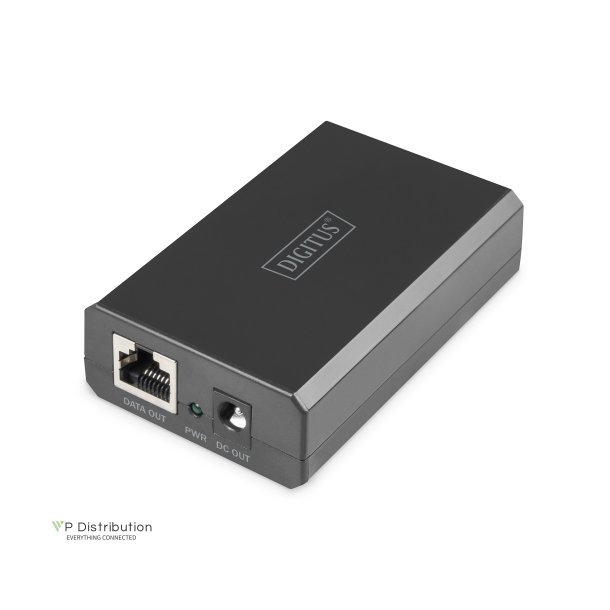

Digitus Gigabit Ethernet PoE Splitter, 802.3af/at/bt Output: 12V/4.25A, 24V/2.125A, 51W

Digitus Gigabit Ethernet PoE Splitter, 802.3af/at/bt Output: 12V/4.25A, 24V/2.125A, 51W

Du skal være logget ind for at kunne lave bestillinger

Varenr.: DN-95211
Leveringstid: Cirka. 2-4 dage i leveringstid
The PoE splitter supplies data and power via a single Ethernet cable to devices that do not support Power over Ethernet. Simply connect the input of the splitter to a PoE switch or PoE injector and the output side to a non-PoE network device such as an access point, IP phone or camera to provide power and data. The extender is self-powered via PoE, so no additional power supply is required. The output voltage can be regulated to 12V or 24V via a dip switch. This splitter extends your network wherever you want to place network devices for which no sockets are available. are available.
  • Beskrivelse
    • Number of ports: 1 • PoE standard: IEEE802.3bt (PoE++) • Ethernet speed: Gigabit • Industrial usage: false • Ethernet speed: 10/100/1000Mbps Gigabit half/full duplex • PoE standard: IEEE802.3at/bt • Input: Power + data input (RJ45) • Output: Data output (RJ45), DC output • Plug-and-play installation - no configuration required • Selectable output voltages: 12V/4.25A, 24V/2.125A • Splits the 48VDC power into different DC outputs via RJ45 Ethernet cable • Status LED on the device (PoE ready/PoE in operation) • Protection through insulation of the circuit • Maximum output power up to 51W • Supports a wide input voltage range from 36VDC to 57VDC • Supports 5.5 mm and 3.5 mm DC connections • Thermal shutdown • Operating temperature: 0 to 40°C • Dimensions (L x W x H): 80 x 55 x 23 mm • Color: Black • Weight: 80g
