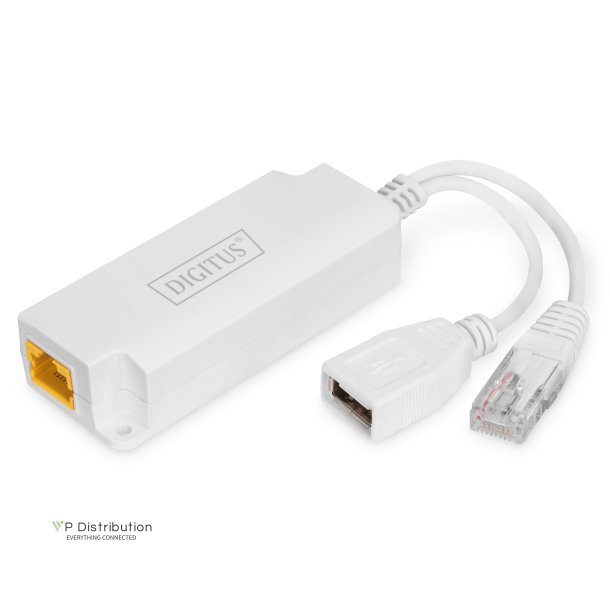

Digitus Gigabit USB-A PoE Splitter USB Type A Female

Digitus Gigabit USB-A PoE Splitter USB Type A Female

Du skal være logget ind for at kunne lave bestillinger

Varenr.: DN-95208
Leveringstid: Cirka. 2-4 dage i leveringstid
DN-95208 is an indoor rated PoE USB-A splitter specially designed for complex backhaul and networking application. Enclosed in an IP40 fire retardant plastic case with compact design. It works as a converter to get power and data from PoE injector or PoE Switch of 802.3af/at over RJ45 connector then separate power and data to PDs. The output power is 5Vdc, 2.5A(max) via USB-A Female connector to PDs. Such as power communication station, wireless APs, network cameras, Tablet PC, and other USB-A devices. PoE signal into a separate data signal at 10/100Mbps. For planning purposes, the effective distance is 100 meters via Cat5e/Cat6 cables from Ethernet data source to PD.
  • Beskrivelse
    • Number of ports: 1 • PoE standard: IEEE802.3at (PoE+) • Ethernet speed: Fast Ethernet • Industrial usage: false • PoE Input :40-57Vdc PoE 802.3af/at • USB Power Output: 5Vdc 2.5A(max) • Data Output Speed: 10/100Mbps (RJ45) • IEEE 802.3u , 802.3af/at • IEEE 802.3u , 802.3af/at • Operating Temperature: 0? to 40? • Wall-moutable • IP40 rated Protection • Input Power Pins: 4/5(+), 7/8(-) or 3/6(+),1/2(-) • Size: 82.3 x34.7 x 19mm • Attached cable length 124mm
