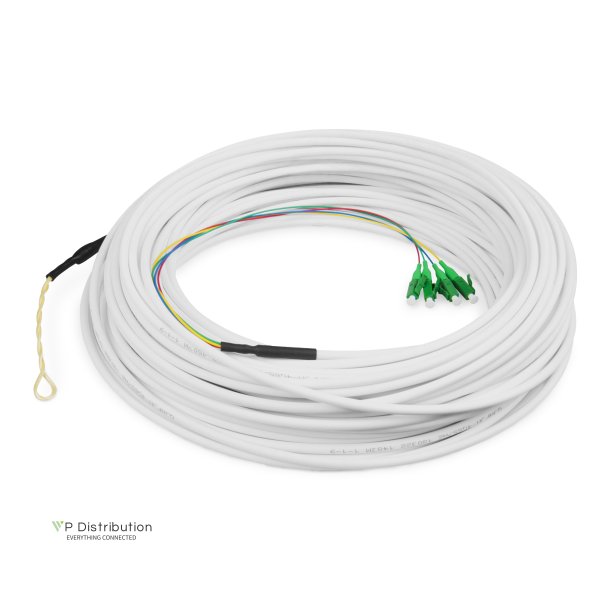

Digitus FTTH Drop Cable, Singlemode, 4 Fiber, LC/APC G.657.A2, 30m

Digitus FTTH Drop Cable, Singlemode, 4 Fiber, LC/APC G.657.A2, 30m

Du skal være logget ind for at kunne lave bestillinger

Varenr.: DK-3904LCA-30
Leveringstid: Cirka. 2-4 dage i leveringstid
The growing requirement for extending Fiber networks into the home demands products that enable an easy and effecient installation to realize the network. The Digitus cable offers the possibility to easily extend and complete the fiber network inside the home. The cable is designed to be used as the connection line between building distributor and floor distributor or subscriber termination point in network level 4. The easiness of installation comes from the fact that the cable is preassembled with LC/APC connectors on subscriber end and the open can then be installed through duct to the distributor acting as entry point for fiber network in building.
  • Beskrivelse
    • Application: universal • Cable diameter: 4 mm • Cable jacket: LSOH • Color cable: white • Connector 1: LC (APC) • Fiber class: OS2 • Fiber diameter: 9/125µ • Mode: Singlemode • Number of fibers: 4 • Polishing: APC • Length: 30 m • Fiber type : Singlemode 9/125 • Category : G657A2 • Cable length : 30 m • Number of fibers : 4 • Fiber Color : Blue, Green, Yellow, Red • Connector type : LC/APC • Sheath color : White • Sheath material : LSZH • Stranding element : Kevlar Yarn • Cable construction : Dca • Cable diameter : 4,0mm • Diameter of pulling aid : 7-8cm (length) • Min. Bending radius of cable : 10D/20D • Tensile strength : 400N • Compressive strength : 1000N • Connector insertion loss : ?0.3dB • Connector return loss : ?60dB • Storage temperature : -40~+80 • Working temperature : -20~+70 • Cable Weight : 0,37kg
