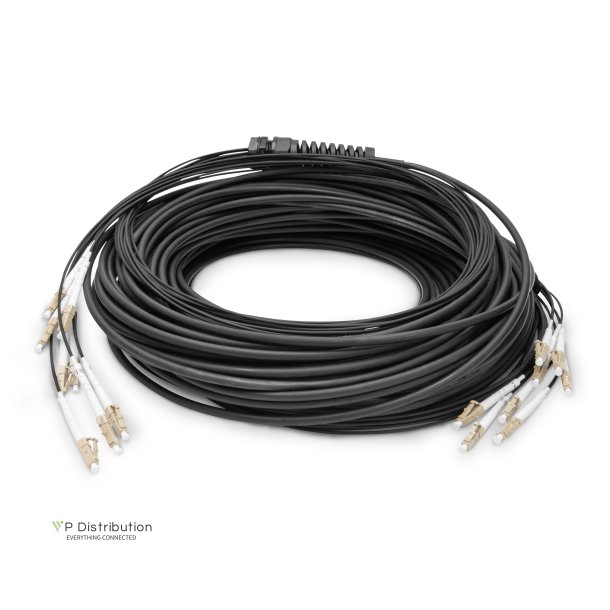

Digitus Breakout cable 8 Fibers, OM4, LC/UPC-LC/UPC universal, color black, 30m

Digitus Breakout cable 8 Fibers, OM4, LC/UPC-LC/UPC universal, color black, 30m

Du skal være logget ind for at kunne lave bestillinger

Varenr.: DK-24338U030BK-BBB
Leveringstid: Cirka. 2-4 dage i leveringstid
This pre-assembled breakout fiberglass cable is perfect for installations that require an extremely robust and reliable fiberglass design where maximum mechanical protection is necessary. It offers a secure Plug & Play solution for installations with the pre-assembled plug. Easy installation on partially equipped patch panels, for example. The measurement report included in delivery eliminates the need for laborious follow-up inspection.
  • Beskrivelse
    • Application: universal • Boot: single-color • Cable jacket: LSOH • Cable type: U-DQ (ZN) BH X E 9/125µm • Color cable: black • Connector 1: LC • Connector 2: LC • Fiber class: OM4 • Fiber diameter: 50/125µ • Mode: Multimode • Number of connectors side 1: 1 • Number of connectors side 2: 1 • Number of fibers: 8 • Polishing: UPC • Length: 30 m • Cable type: Breakout / Universal cable (I/A-DQ (ZN) BH X G 50/125µm) • Fiber category: Multi mode • Fiber type: OM4 50/125 • Number of strands: 8 • Length: 30 • Plug connection 1: LC/UPC • Plug connection 2: LC/UPC • Sheath material: Dca • Color of outer sheath: Black • Halogen-free (in accordance with EN 50267-2-3): Yes • IL in multi mode: max. 0.3 dB • IL in single mode: max. 0.3 dB • RL in multi mode: min. 30 dB • RL in single mode: min. 50 dB • Operating temperature: -20 to 70? • Storage temperature: -20 to 70? • Two-sided insertion tool for secure installation
  • Specifikationer
    Cable Standard OM4
