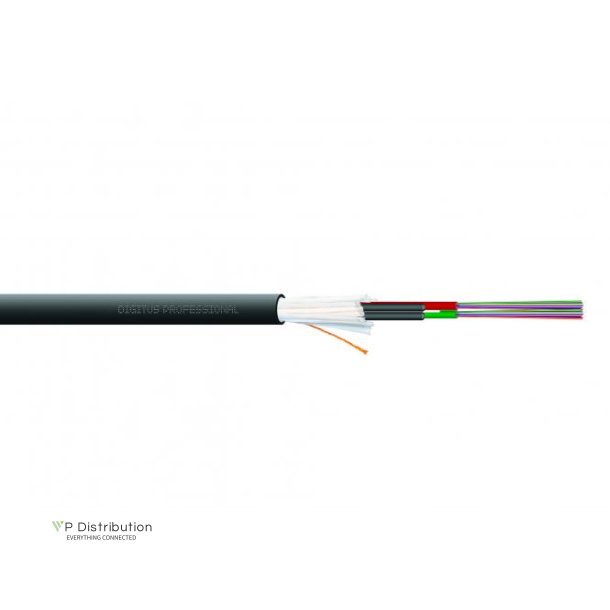

Digitus FO A-I-DQ(ZN)BH 24E9/125µ, SM, OS2, 24 fibers Indoor/Outdoor, LSZH, Dca, black, length 1 m

• Application: universal • Cable jacket: LSOH • Cable type: U-DQ (ZN) BH X E 9/125µm • Color cable: black • Fiber class: OS2 • Fiber diameter: 9/125µ • Mode: Singlemode • Number of fibers: 24 • LSZH – low smoke zero halogen • UV-resistant • Longitudinaly and laterally water-resistant • Glass yarn armoured • Non-metal rodent protection • Metal free • Attenuation at 1310nm : ? max. 0.34 dB/km (before cabling) ; ? max. 0.36 dB/km (after cabling) • Attenuation at 1550nm: ? max. 0.21 dB/km (before cabling) ; ? max. 0.22 dB/km (after cabling) • Attenuation at 1625nm : ? max. 0.23 dB/km (before cabling) ; ? max. 0.25 dB/km (after cabling) • Zero Dispersion Wavelength : 1302 ~ 1324 nm • Zero Dispersion Slope : ? 0.092 ps/nm 2 x km • PMD Link value ( M= 20 cables Q= 0.01%) max. PMDQ : 0.2 ps/?km • Cable Cutoff Wavelength (?cc) : ? 1260 nm • Macro bending Loss (100 turns ; ?50nm) at 1550 nm : ? 0.05 dB • Macro bending Loss (100 turns ; ?50nm) at 1625 nm : ? 0.10 dB • Mode Field Diameter at 1310nm : 9.2 ± 0.4 µm • Cladding diameter : 125 ± 1 µm • Core/ clad concentricity error : ? 0.6 µm • Cladding Non-Circularity : ? 1.0 % • Proof stress : ? 0.69 Gpa • Fiber count (OS2 G.652) : 2 ~ 72 pc • Max. number of loose tube : 6 pc • Fiber number per tube : 12 pc • Loose tube : 2.3 ± 0.2 mm • Strenght member : FRP • Outer sheath : material : LSZH, CPR Dca, EN 50575: 2014+ A1: 2016 ; thickness : 1,6mm ; diameter : 12.0 ± 0.5mm • Max. allowable pulling force : 1500 N • Crush resistance : 1000/300 N/100mm • Cable weight : 300 ± 10 % kg/km • Standard lenght : 4 ± 5 % KMS • Temperature range : transport and storage : - 40°C to + 70°C ; installation : - 40°C to + 60°C ; operation : - 40°C to + 70°C
