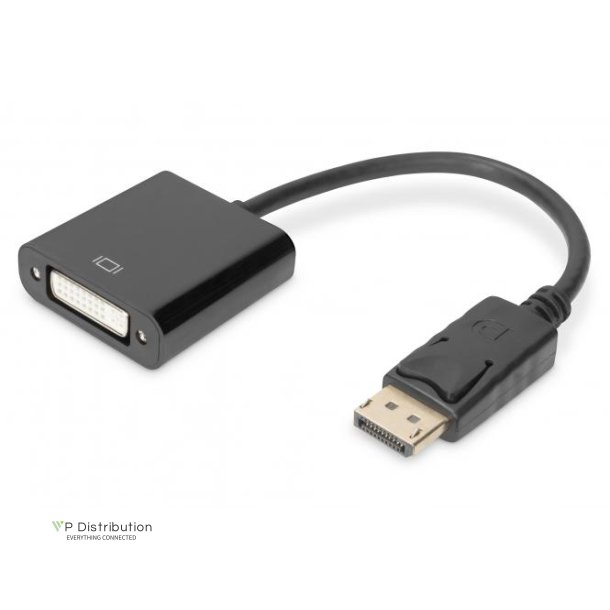

• Assortment: DisplayPort Cables
• AWG: 28
• Color cable: black
• Color connector: black
• Connector 1: DP, plug
• Connector 2: DVI-I, (24+5), jack
• Connector surface: nickel-plated
• DisplayPort standard: DisplayPort 1.1a
• Ferrite filter: none
• HDTV Standard: Full HD
• Hoods: molded
• Interlock: Snap fastener
• Packaging: Polybag
• Wire material: CU
• Length: 0.15 m
• AOC - Active Optical Cable: false
• Shielding: Double shielding
• Support up to 1080p with 60Hz
• Supports digital full HD and a higher transmission rate by Single Link.
• Copper wire, foil and braid shielding for robustness and reliable connection
• Plug and play, no additional driver needed
• Attention! The DVI socket supports the connection of 24+5 plugs, but only transmits single link 18+1 DVI-D signals in Full HD resolution.
• Supports DisplayPort 1.1
• Bandwidth: 6.75 (2.25 per channel, 225 MHz)
• Color depth: 36bit (12bit per channel)
• Power supply via DisplayPort
• Input: DisplayPort male connector, 20 pin
• Output: DVI female connector, (24+5)
• Resolutions: 480i, 576i, 1080i, 480p, 576p, 720p, 1080p (50 / 60 Hz)
• Operating temperature: 0°C to +45°C
• Operating humidity: 10% to 80% RH (no condensation)
• Storage temperature: -10°C to +80°C
• Storage humidity: 5% to 90% RH (no condensation)
• Power consumption: 300 mW
• Entire cable length: 15 cm
• Color: black
