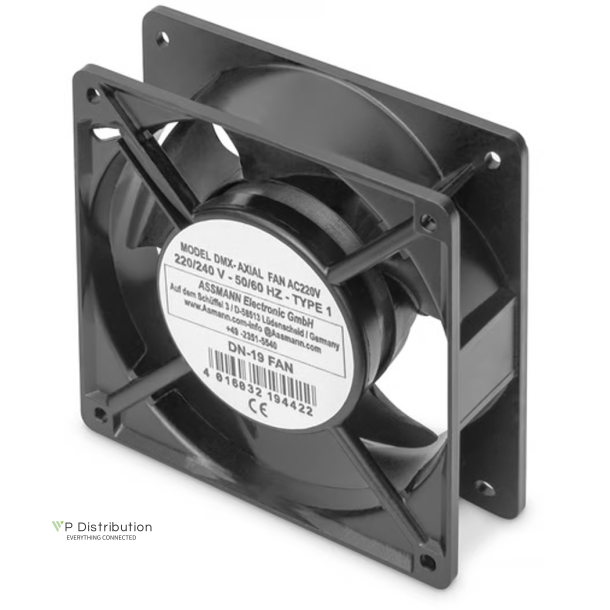

Digitus Fan replacement for fan units 138 m³/h air circulation, 47 dB/m noise level

Du skal være logget ind for at kunne lave bestillinger

Varenr.: DN-19 FAN

Leveringstid: Cirka. 2-4 dage i leveringstid

The individual ventilator from DIGITUS® serves as replacements to exchange with existing ventilator units from DIGITUS® for network and server cabinets. Alternatively, the ventilator can also be individually wired and commissioned. For example, it can serve as an extension to the DIGITUS® wall mounting cabinets for outdoor areas (e.g.: DN-19 12-U-I-OD) in which it can simply be snapped in on the inside in front of the existing filter.

Beskrivelse

• Color: black, RAL 9005 • Air flow: 152.9 m3/min • Filter: false • For cabinet series: all • Inch form factor (IEC 60297): 482.6 mm (19") • Mounting area: Roof • Quantity of mounted fans: 1 • Dimensions: 120 x 120 x 38 mm • Weight: 530 g • 1-phase • Power supply: 230 VAC • Frequency: 50/60 Hz • Power output: 0.14/0.12 A • Power input: 22/21 W • Speed: 2700/3100 RPM • Air circulation: 161.40 / 195.38 m³/h • Noise level: 42/47 dbA • Operating temperature: -30 °C to +75 °C • Life cycle: 50000 h • Housing material: Die-cast aluminum alloy • Caster material: UL 94-0 plastic • Motor protection: Impedance protected • Ball bearing • Connection cable: Lead wires

Downloads

Titel	Type	Størrelse	Download
dn-19-fan-120x120-fan-for-racks-230v-productdatasheetbrochure.pdf	PDF	241.04KB	Download
