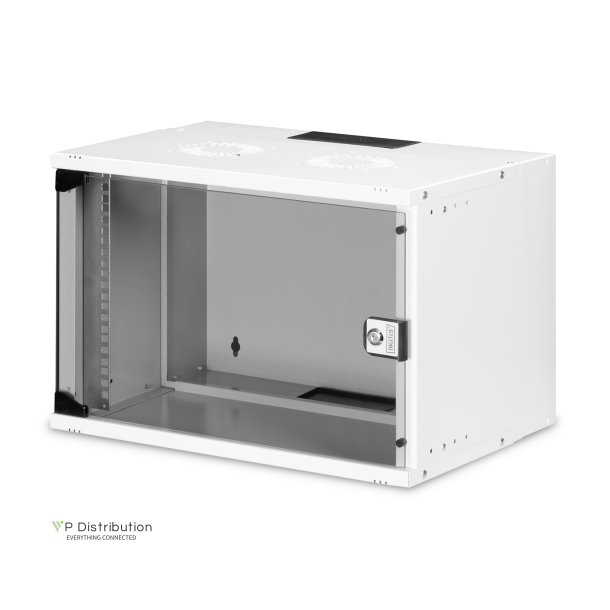

Digitus 19" 7U wall mounting cabinet, SOHO PRO 370 x 540 x 400 mm, grey

Digitus 19" 7U wall mounting cabinet, SOHO PRO 370 x 540 x 400 mm, grey

Du skal være logget ind for at kunne lave bestillinger

Varenr.: DN-49202
Leveringstid: Cirka. 2-4 dage i leveringstid
Whether in the home, office or for sub-distribution boards with limited space: With the compact 483 mm (19") solutions from the SOHO PRO series, you can install your network wherever you want. Available in four height units (4U, 7U, 9U, 12U), the wall-mounted enclosures are equipped with a full glass door and a cable entry in the top and bottom. A pair of galvanized 483 mm (19") profile rails labelled with legible height units are installed inside. These can be adjusted in depth. Each cabinet is a robust steel construction made of up to 1.5 mm thick sheet steel. The coloring takes the form of electrostatic powder coating in the standard colors grey (RAL 7035) and black (RAL 9005). The door hinges can be changed. The network enclosures are supplied unassembled in an optimized flat pack. Assembly takes place in just a few steps and is child's play thanks to the enclosed step-by-step instructions.
  • Beskrivelse
    • Cabinet type: Wall mounting cabinet • Color: light grey, RAL 7035 • Depth: 400 mm • Front door: Glass door, single opening • Load capacity: 60 kg • Side panels: Both sides • Units: 7 • Width: 540 mm • IP protection class: IP20 • Mounted: false • Protection class IP20 • Lockable safety glass door • 200° door opening angle • 1-point locking on the front door • 483 mm (19") profile rails mounted at the front inside the enclosure, galvanized • 483 mm (19") profile rails are adjustable in depth • 1.1 - 1.5 thick sheet steel with a high load-bearing capacity, powder-coated • Cable entry with plastic cover in the roof and floor • Ventilation slots for active and passive ventilation • Installation depth for components max.: 327 mm • Product dimensions (H x W x D): 370 x 540 x 400 mm
