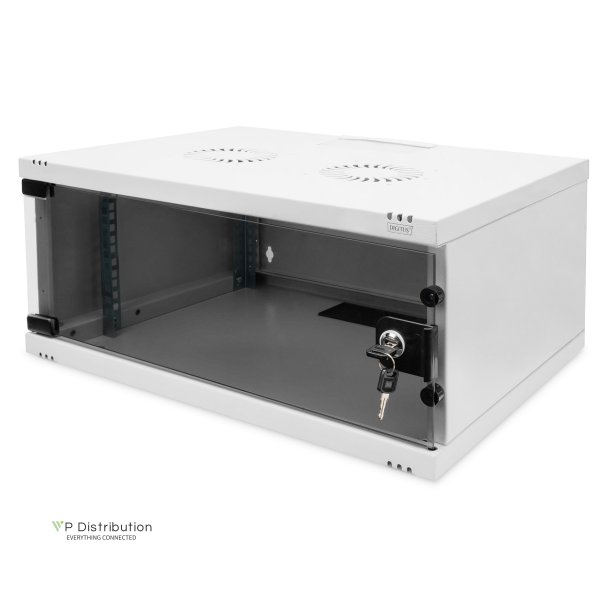

Digitus 4U wall mounting cabinet, SOHO, unmounted 241x540x400 mm, full glass front door, grey

Digitus 4U wall mounting cabinet, SOHO, unmounted 241x540x400 mm, full glass front door, grey

Du skal være logget ind for at kunne lave bestillinger

Varenr.: DN-38010
Leveringstid: Cirka. 2-4 dage i leveringstid
The 483 mm (19”) network cabinets for wall installation from the SOHO series are delivered unassembled using a flat pack to optimize costs. Available in four rack units and equipped with a full glass door as well as a cable entry with brushes in the roof and floor, this is the perfect product for subdividing or building up a small to medium-sized network. Two pairs of galvanized 483 mm (19”) profile rails labeled with easy-to-read rack units are installed on the inside. Their depth can be adjusted. Each cabinet is made of up to 1.5 mm thick sheet steel. Coloring is done with electrostatic powder coating in the standard colors gray (RAL 7035) or jet black (RAL 9005). The door hinges can be switched. Installation takes just a few steps and is extremely easy thanks to the step-by-step instructions included.
  • Beskrivelse
    • Cabinet type: Wall mounting cabinet • Color: light grey, RAL 7035 • Depth: 400 mm • Front door: Glass door, single opening • Load capacity: 60 kg • Side panels: Both sides • Units: 4 • Width: 540 mm • IP protection class: IP20 • Mounted: false • Safety class rating IP20 • Lockable safety-glass door • 200° door opening angle • 1-point-locking-mechanism on the front door • 483 mm (19”) profile rails are adjustable in depth • 1.1 - 1.5 strong sheet steel with a high loading capacity, powder coated • Cable entry with brush strip on the top and with plastic cover on the base • Roof is prepared for fan units (punched out entries) • Ventilation slots for active and passive ventilation and exhausting • Equipment mounting depth min.-max.: 170-270 mm • Installation depth for components min. - max.: 170 - 270 mm
