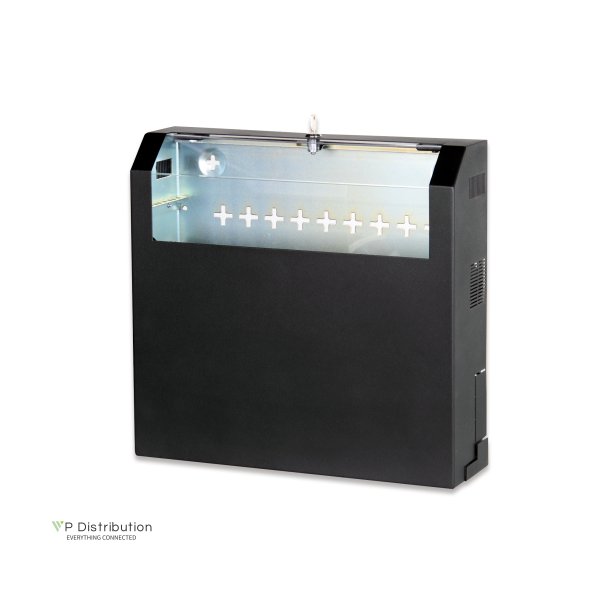

Digitus Wall mounting cabinet, SOHO, slim, 156x525x475 mm 3U rotatable, 2U fix, color black (RAL 9005)
  • Digitus Wall mounting cabinet, SOHO, slim, 156x525x475 mm 3U rotatable, 2U fix, color black (RAL 9005)
  • Digitus Wall mounting cabinet, SOHO, slim, 156x525x475 mm 3U rotatable, 2U fix, color black (RAL 9005)
  • Digitus Wall mounting cabinet, SOHO, slim, 156x525x475 mm 3U rotatable, 2U fix, color black (RAL 9005)

Digitus Wall mounting cabinet, SOHO, slim, 156x525x475 mm 3U rotatable, 2U fix, color black (RAL 9005)

Du skal være logget ind for at kunne lave bestillinger

Varenr.: DN-19 04U-PB-B
Leveringstid: Cirka. 2-4 dage i leveringstid
The SOHO, Slim wall-mounted enclosures are ideal for housing active and passive components. They are characterized by simple and time-saving installation. The modern design fits into any office or home. The enclosure has 2 separate installation options: A rotatable vertical 3U rail is attached to the front. Alternatively, this can also be positioned horizontally or at an angle. A horizontal 2U rail is attached to the rear (fixed), which can be used for passive network components, for example. The punched-out mounting holes in the entire lower housing area also allow components that are not 483 mm (19") compatible to be installed (e.g. DSL routers, etc.). Alternatively, a mounting plate can be fitted, which is available as an option.
  • Beskrivelse
    • Cabinet type: Wall mounting cabinet, home automation • Color: black, RAL 9005 • Depth: 475 mm • Front door: Glass door, single opening • Load capacity: 30 kg • Side panels: Both sides • Units: 5 • Width: 525 mm • IP protection class: IP20 • Mounted: true • Protection class IP20 • Lockable housing with transparent polycarbonate pane • Upper part of the housing can be opened up to 80° • Steel door stop mechanism keeps the door open • 1-point four-point locking • 2 separate 483 mm (19") installation options: 3U vertical (rotatable), 2U horizontal (fixed) • Max. installation depth (from front vertical rail to stop on rear horizontal rail): approx. 265 mm • 2.0 mm thick sheet steel with a high load-bearing capacity, powder-coated • Pre-punched cut-outs for cable routing • Ventilation slots for active and passive ventilation • Area for cable ties • Lower housing area with punched-out mounting holes for mounting equipment that is not 483 mm (19") compatible • Mounting plate is optionally available • Fan mount dimensions: 57.5 x 57.5 mm • Hole spacing for fan mounting: 50 x 50 mm (3.5 mm diameter)
  • Downloads
    Titel Type Størrelse Download
    DN-1904U-PB-B_datasheet_en_Datasheet-EN_20181019.pdf PDF 784.39KB Download
