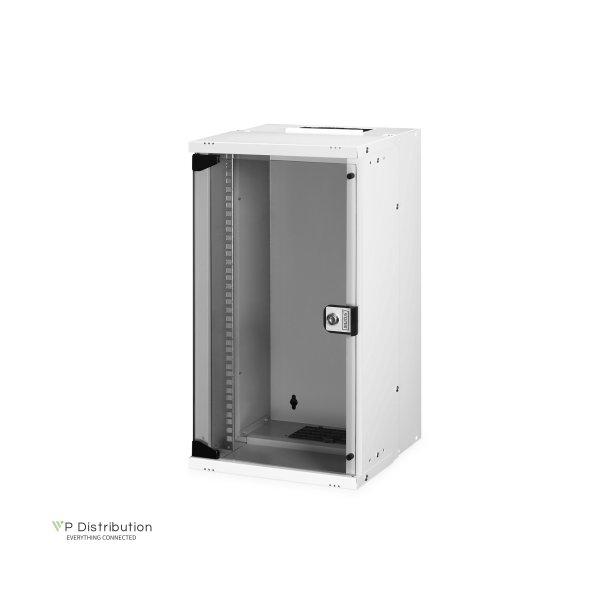

Digitus 10" 12U wall mounting cabinet, SOHO PRO 595 x 315 x 300 mm, grey

Digitus 10" 12U wall mounting cabinet, SOHO PRO 595 x 315 x 300 mm, grey

Du skal være logget ind for at kunne lave bestillinger

Varenr.: DN-49104
Leveringstid: Cirka. 2-4 dage i leveringstid
Whether in the home, office or in sub-distribution boards with limited space: With the compact 254 mm (10") solutions from the SOHO PRO series, you can install your network wherever you want. Available in three height units (6U, 9U, 12U), the wall-mounted enclosures are equipped with a full glass door and a cable entry in the roof and base. A pair of galvanized 254 mm (10") profile rails labelled with legible height units are installed inside. These can be adjusted in depth. Each cabinet is a robust steel construction made of up to 1.5 mm thick sheet steel. The coloring takes the form of electrostatic powder coating in the standard colors grey (RAL 7035) and black (RAL 9005). The door hinges can be changed. The network enclosures are supplied unassembled in an optimized flat pack. Assembly takes place in just a few steps and is child's play thanks to the enclosed step-by-step instructions.
  • Beskrivelse
    • Cabinet type: Wall mounting cabinet • Color: light grey, RAL 7035 • Front door: Glass door, single opening • Load capacity: 30 kg • Side panels: Both sides • Units: 12 • Width: 316 mm • IP protection class: IP20 • Mounted: false • Protection class IP20 • Lockable safety glass door • 200° door opening angle • 1-point locking on the front door • 254 mm (10") profile rails mounted at the front inside the enclosure, galvanized • 254 mm (10") profile rails are adjustable in depth • 1.1 - 1.5 thick sheet steel with a high load-bearing capacity, powder-coated • Cable entry with brush strip in the roof and with plastic cover in the floor • Ventilation slots for active and passive ventilation • Installation depth for components max.: 254 mm • Product dimensions (H x W x D): 595 x 315 x 300 mm • Packaging dimensions (H x W x D): 175 x 360 x 610 mm • Weight (net / gross): 7.92 / 8.39 kg
