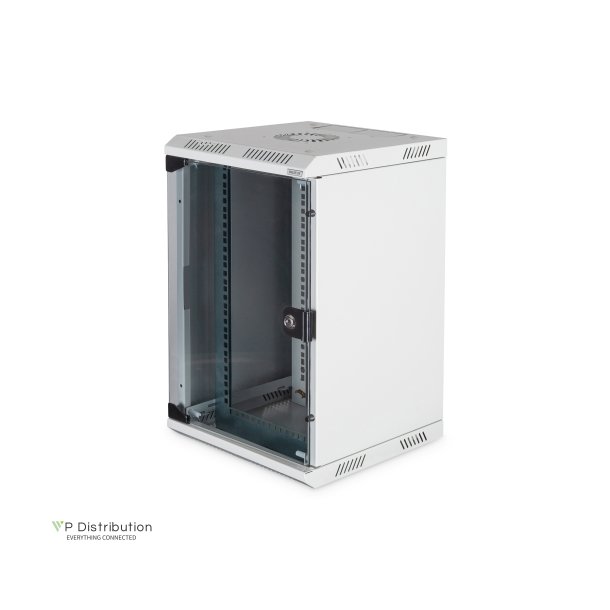

Digitus 10" and 19" combi wall mounting cabinet 10U horizontal (10"), 5U vertical (19"), grey
  • Digitus 10" and 19" combi wall mounting cabinet 10U horizontal (10"), 5U vertical (19"), grey
  • Digitus 10" and 19" combi wall mounting cabinet 10U horizontal (10"), 5U vertical (19"), grey
  • Digitus 10" and 19" combi wall mounting cabinet 10U horizontal (10"), 5U vertical (19"), grey
  • Digitus 10" and 19" combi wall mounting cabinet 10U horizontal (10"), 5U vertical (19"), grey
  • Digitus 10" and 19" combi wall mounting cabinet 10U horizontal (10"), 5U vertical (19"), grey
  • Digitus 10" and 19" combi wall mounting cabinet 10U horizontal (10"), 5U vertical (19"), grey
  • Digitus 10" and 19" combi wall mounting cabinet 10U horizontal (10"), 5U vertical (19"), grey

Digitus 10" and 19" combi wall mounting cabinet 10U horizontal (10"), 5U vertical (19"), grey

Du skal være logget ind for at kunne lave bestillinger

Varenr.: DN-1019
Leveringstid: Cirka. 2-4 dage i leveringstid
With a round profile frame installed at the front, the wall-mounted enclosure offers the option of horizontal mounting of 254 mm (10") components (10 height units) and, alternatively, vertical mounting of 482.6 mm (19") components (5 height units). The front profile frame is depth-adjustable. There is also a profile hole integrated into the rear section of the enclosure frame for mounting additional components with 254 mm (10") dimensions. The enclosure is made from a robust steel construction. The cable entry openings in the roof, base and rear provide the best options for tidy cable management. The compact enclosure is therefore ideal for all common IT and telecommunications applications, especially where space is limited and in private households.
  • Beskrivelse
    • Cabinet type: Wall mounting cabinet • Color: light grey, RAL 7035 • Depth: 350 mm • Front door: Glass door, single opening • Load capacity: 30 kg • Side panels: Both sides • Units: 10 • Width: 350 mm • IP protection class: IP20 • Mounted: true • Lockable safety glass door with 200° door opening angle • 1-point locking on the front door • Circular profile frame mounted on the front inside the enclosure, galvanized • Maximum installation depth: approx. 260 mm to rear panel; approx. 220 mm to rear profile perforation • 1.1 - 1.5 thick sheet steel with a high load-bearing capacity, powder-coated • Pre-punched cable inlets in the roof, floor and rear side • Ventilation slots for active and passive ventilation • Load capacity of the profile rails: 30 kg
  • Downloads
    Titel Type Størrelse Download
    DN-1019_datasheet_en_Datasheet-EN_20191127.pdf PDF 619.45KB Download
