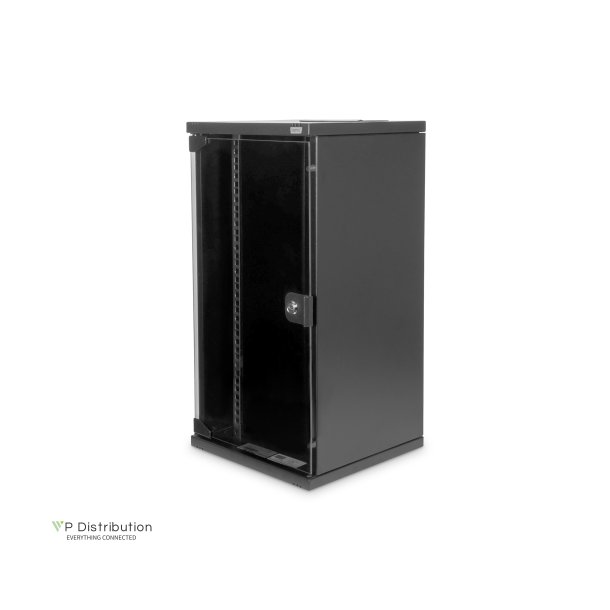

Digitus 10 inch network bundle, incl. 12U cabinet, black and various components

Du skal være logget ind for at kunne lave bestillinger

Varenr.: DN-10-SET-3-B

Leveringstid: Cirka. 2-4 dage i leveringstid

Whether for private areas, office or sub-distribution units with limited space: With the compact 254 mm (10”) solutions, you can install your network wherever you like. The wall housings available in three rack units (6 rack units, 9 rack units, 12 rack units) are supplemented in these network sets by perfectly coordinated components to ensure fast and easy usability of IT cabling. The network cabinet and relevant accessories (such as switch, patch panel, socket strip, shelf, cable guidance panel, patch cable, etc.) are delivered in a compact box.

Beskrivelse

• Cabinet type: Wall mounting cabinet • Color: black, RAL 9005 • Depth: 300 mm • Front door: Glass door, single opening • Load capacity: 30 kg • Side panels: Both sides • Units: 12 • Width: 312 mm • IP protection class: IP20 • Mounted: true • Wall housing dimensions (H x W x D): 592 x 312 x 300 mm • Power strip with 3 safety plug sockets 250VAC 50/60Hz / 16A / 4000W • Power strip with 2 m mains cable H05VV-F 35 1.5 mm² with safety plug sockets • Switch complies with network standards IEEE 802.3, IEEE 802.3u, IEEE 802.3ab and IEEE 802.3x • Patch panel for applications up to 250 MHz, 1GBase-T • Cable installation on patch panel via LSA rails, color coded in accordance with EIA/TIA 568 A & B • CAT 6 S-FTP Patch Cable, Cu, LSZH AWG 27/7, Length 1 m, Color black • 1 rack unit dummy cover plate, 45 x 255 x 10 mm, black (RAL 9005) • 0.5 rack unit cable brush strip, 22 x 254 x 12 mm, black (RAL 9005) • 1 rack unit cable management panel, 3x cable rings, 44x254x60 mm, black (RAL 9005)

Downloads

Titel	Type	Størrelse	Download
DN10SET3B_4016032477525_en_Datasheet.pdf	PDF	920.34KB	Download
