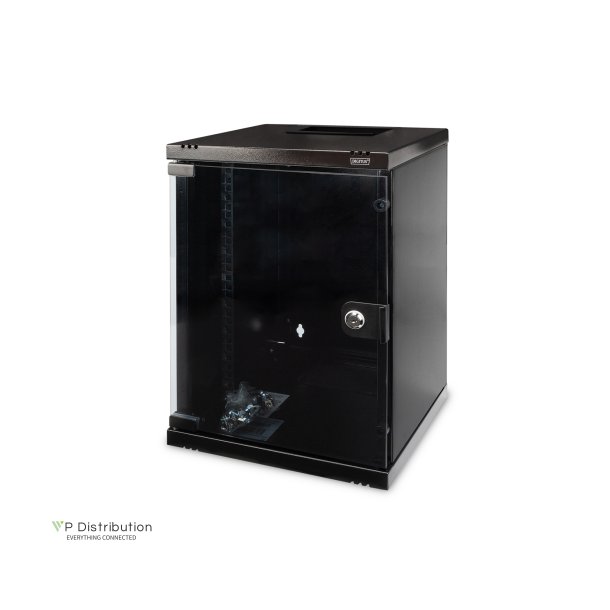

Digitus 254 mm (10") 9U wall mounting cabinet 464x312x300 mm, color black (RAL 9005)
  • Digitus 254 mm (10") 9U wall mounting cabinet 464x312x300 mm, color black (RAL 9005)
  • Digitus 254 mm (10") 9U wall mounting cabinet 464x312x300 mm, color black (RAL 9005)
  • Digitus 254 mm (10") 9U wall mounting cabinet 464x312x300 mm, color black (RAL 9005)
  • Digitus 254 mm (10") 9U wall mounting cabinet 464x312x300 mm, color black (RAL 9005)
  • Digitus 254 mm (10") 9U wall mounting cabinet 464x312x300 mm, color black (RAL 9005)
  • Digitus 254 mm (10") 9U wall mounting cabinet 464x312x300 mm, color black (RAL 9005)
  • Digitus 254 mm (10") 9U wall mounting cabinet 464x312x300 mm, color black (RAL 9005)

Digitus 254 mm (10") 9U wall mounting cabinet 464x312x300 mm, color black (RAL 9005)

Du skal være logget ind for at kunne lave bestillinger

Varenr.: DN-10-09U-B
Leveringstid: Cirka. 2-4 dage i leveringstid
Whether in the home, office or in sub-distribution boards where space is limited: With the compact 254 mm (10") solutions, you can install your network wherever you want. Available in three height units (6U, 9U, 12U), the wall-mounted enclosures are equipped with a full glass door and a cable entry with brushes in the top and bottom. A pair of galvanized 254 mm (10") profile rails labelled with legible height units are installed inside. These can be adjusted in depth. Each cabinet is a robust steel construction made of up to 1.5 mm thick sheet steel. The coloring takes the form of electrostatic powder coating in the standard colors grey (RAL 7035) and black (RAL 9005). Door hinges can be changed. Furthermore, the cabinets can be completely dismantled if required thanks to the demountable design.
  • Beskrivelse
    • Cabinet type: Wall mounting cabinet • Color: black, RAL 9005 • Depth: 300 mm • Front door: Glass door, single opening • Load capacity: 30 kg • Side panels: Both sides • Units: 9 • Width: 312 mm • IP protection class: IP20 • Mounted: true • Protection class IP20 • Lockable safety glass door • 200° door opening angle • 1-point locking on the front door • 254 mm (10") profile rails mounted at the front inside the enclosure, galvanized • 254 mm (10") profile rails are adjustable in depth • 1.1 - 1.5 thick sheet steel with a high load-bearing capacity, powder-coated • Cable entry with brush strip in the roof and with plastic cover in the floor • Ventilation slots for active and passive ventilation • Installation depth for components max.: 240 mm • Including earthing bolt on the housing base
  • Downloads
    Titel Type Størrelse Download
    DN-10-09U-B_datasheet_mul_Technical-Drawing_20230926.pdf PDF 765.68KB Download
