• Supported fiber diameter : 125um
• Supported fiber diameter incl. Coating : 250um, 900um
• Supported fiber type : silicon optical fiber
• The average cutting Angle (slitting angle): ?0.7 degrees (single-core fiber)
• The maximum cutting Angle (sliding angle) : ?1.2 degrees (single-core fiber)
• Cutting broken rate : ?5%
• Cutting length: Coating diameter 250um: 9~16mm; Coating diameter 900um: 10~16mm
• Blade life : 48,000 fiber core (24 positions, one position 1000 times, 3 times height adjustable)
• With 3-in-1 multifunctional fixture, support bare fiber, leather cable (butterfly and round), ribbon cable
• Working temperature : -10? ~ +50?; Working temperature in Alpine region: -25? ~ +50?;
• Storage temperature : -30? ~ +60?;
• Other environmental characteristics : relative humidity: ?90% (no condensation); Altitude : 0 m ~ 3600 m; Working altitude in plateau area : 0 m ~ 5000 m. Windproof characteristics : wind speed ?15 m/s

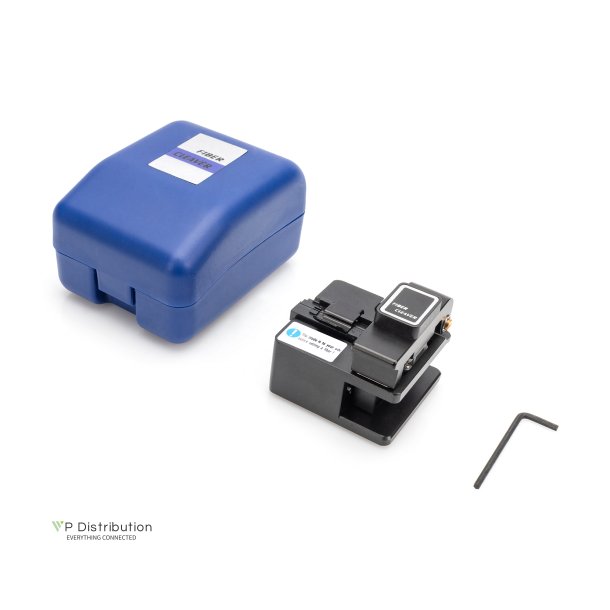

• Equipped with dustproof / shockproof protection box, and provide the blade replacement manual and supporting tools
• Dimensions (H × W × D) : 6 x 5.5 x 5.5 cm
• Dimensions transport box (plastic case) (H × W × D) : 11.2 x 8.5 x 6.8 cm
• Weight: 255g (without package), 355g (with package)
