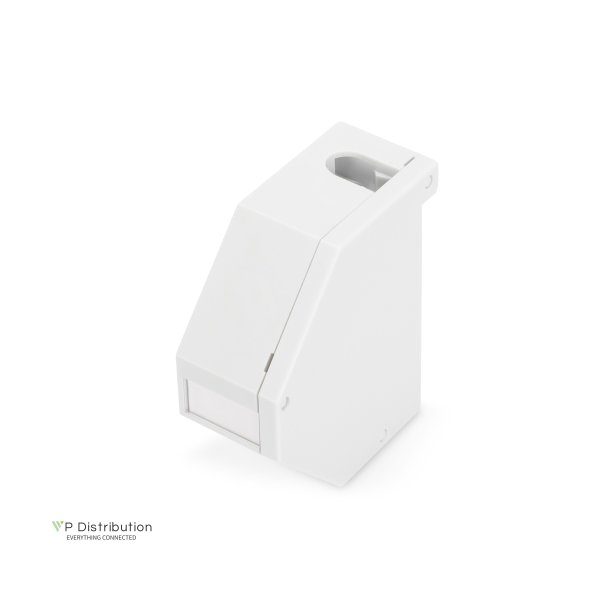

DIN-Rail adapter for 1x Keystone Modules, IP20 labeling field, earthing spring, side cover

DIN-Rail adapter for 1x Keystone Modules, IP20 labeling field, earthing spring, side cover

Du skal være logget ind for at kunne lave bestillinger

Varenr.: AN-25186
Leveringstid: Cirka. 2-4 dage i leveringstid
The Keystone Module is mounted in a Housing on a DIN-Rail. The distance of the DIN-Rail to the back plate of the cabinet should be about 10 mm. Up to 12 Keystone Modules can be installed in a row in the distribution panel. IP20 protection is guaranteed, when the Keystone Housing is mounted with site covers. The delivery does not contain Keystone Modules.
  • Beskrivelse
    • Layout keystone entry: 45° vertical outlet • Area of application: Electrical distribution box • Norms: ISO/IEC 11801 3rd Ed., EN 50173-1, EIA/TIA 568-C • General properties: • Suitable for installation on DIN-Rail in electrical distribution boxes • Integrated dust cover • Lateral cover caps included • Protection class IP20 • Technical properties: • Housing material: ABS UL-94V-0 • Physical properties: • Operation temperature: -20° C to +70 °C (ISO/IEC 11801, EN 50173-1, ANSI/TIA/EIA 568 C)
