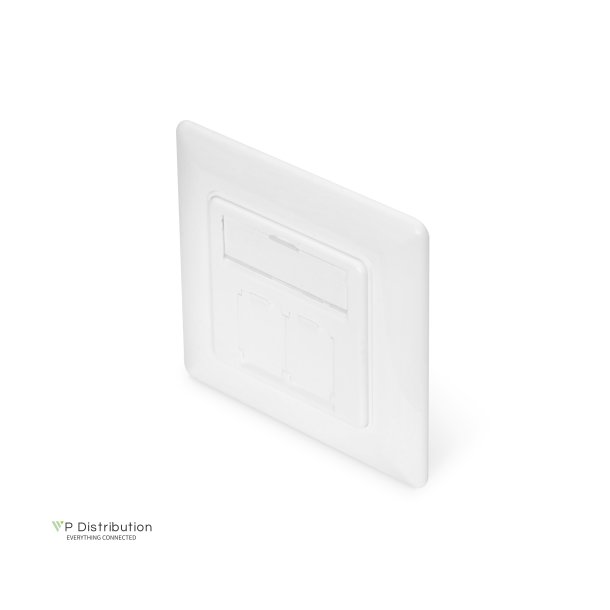

Wallplate for Keystone Jacks, German Type 80x80 frame, 50x50 central plate, design comp.

Wallplate for Keystone Jacks, German Type 80x80 frame, 50x50 central plate, design comp.

Du skal være logget ind for at kunne lave bestillinger

Varenr.: DN-93831
Leveringstid: Cirka. 2-4 dage i leveringstid
The DIGITUS® Faceplate is suitable for the connection of the shielded DIGITUS® Keystone Modules. Included dust protection shutters provide perfect protection. The connection way of the module is 45° vertical. The face plate is fully designed and compatible with common switch programs.
  • Beskrivelse
    • Layout keystone entry: 45° outlet • Area of application: Cavity socket, trunking, surface mount box • Norms: ISO/IEC 11801 3rd Ed., EN 50173-1, EIA/TIA 568-C • General properties: • Suitable for installation in trunking, flush and surface mount • Central ground connection • Integrated dust cover • Plastic label field • Design compatible to current switch ranges of switch manufacturers • Technical properties: • Wall outlet material: Die-cast metal • Central plate material: ABS UL 94V-0 • Frame material: ABS UL 94V-0 • Surface mount box material: ABS UL 94V-0 • Physical properties: • Operation temperature: -20° C to +70 °C (ISO/IEC 11801, EN 50173-1, ANSI/TIA/EIA 568 C) • Can be used as 1-Port and 2-Port wall outlet • Colour: White RAL9003
