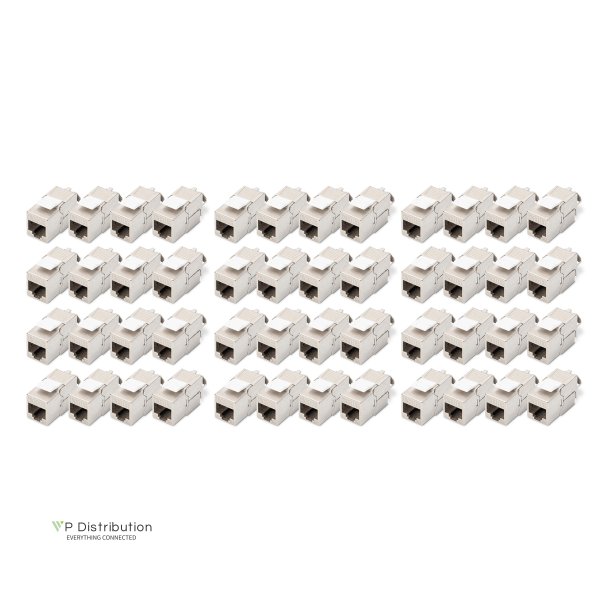

CAT 6A Keystone Jack, shielded, 48 pcs. toolfree connection

CAT 6A Keystone Jack, shielded, 48 pcs. toolfree connection

Du skal være logget ind for at kunne lave bestillinger

Varenr.: DN-93615-48
Leveringstid: Cirka. 2-4 dage i leveringstid
The shielded cat. 6A keystone module set DN-93615 from DIGITUS® impresses with future-oriented standards and high-end quality for your network. The compact design makes series installation possible in a 483 mm (19”) 1U panel. Tool-free installation uses LSA rails color-coded in accordance with EIA/TIA 568 A&B. Its compact design also means that the module fits in design-compatible modular junction boxes.
  • Beskrivelse
    • Category: CAT 6A • Category 6A 10GBase-T, 500 MHz • ISO/IEC 11801 3rd Edition, EN 50173-1 • Suitable for PoE/PoE+/4PPoE (IEEE 802.3af, 802.3at, 802.3bt) • Suitable for modular patch panel and modular wall outlet installation. • RJ45-Jack, 8P8C • Cable installation via insulation-displacement connectors, color coded in accordance with EIA/TIA 568 A & B • Cable grip and cable fixation using intelligent cable manager • Tool-free mounting connection • 360° shield contact • Case material: Zinc die-cast – nickel-plated • Contact material: Phosphor bronze • Contact coating: Nickel, gold-plated 0.5 µ • Insertion force: Max. 30N (as per IEC 60603-7-51) • Holding force: 7.7 kg between jack and plug • Operating temperature range: -20 °C to +70 °C (ISO/IEC 11801, ANSI/TIA 568 C.2) • Mating cycles: ? 750 (ISO/IEC 11801, IEC 60603-7-51) • Copper cable diameter: AWG (26/7 – 22/1), stranded and solid wire • Tested with AWG 22/1 solid installation cable • (DIGITUS® DK-174X-A-VH-X; AWG 22/1 cat. 7A installation cable) • Dielectric strength: 1000 VDC (contact/contact), 1500 VDC (contact/ground) • Tool-free installation using LSA insulation-displacement connectors color coded in accordance with EIA/TIA 568 A & B • Intelligent cable manager (resealable) • CAT 6A Keystone Module, shielded Set: 48 pcs. • Dimensions (HxWxD): 21.0 x 14.5 x 34.5 mm • Weight: 19.5 g
