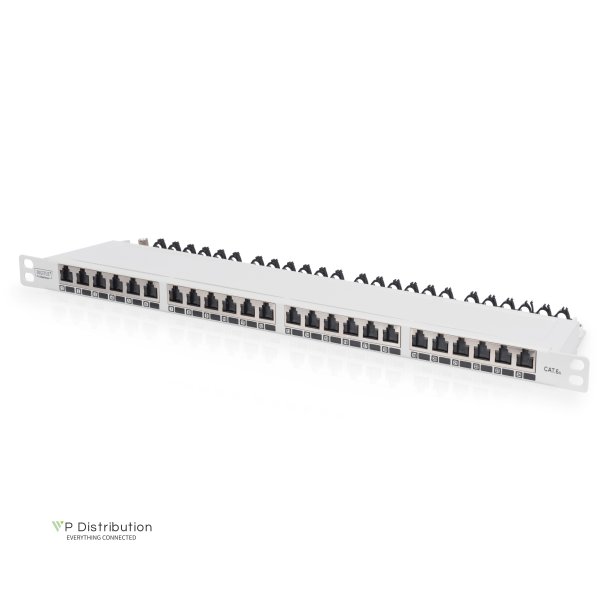

CAT 6A EA patch panel, shielded, 24-port RJ45 dust cover, 8P8C, 0.5U, grey RAL 7035

CAT 6A EA patch panel, shielded, 24-port RJ45 dust cover, 8P8C, 0.5U, grey RAL 7035

Du skal være logget ind for at kunne lave bestillinger

Varenr.: DN-91624S-SL-EA-G
Leveringstid: Cirka. 2-4 dage i leveringstid
The DIGITUS® 24-port 0.5U Patch Panel offers a high density. As the panel is only 0.5U in height, it allows to present 48 ports on 1U (2 panels with 24 ports each) which can be installed.
  • Beskrivelse
    • Color: light grey, RAL 7035 • Ports: 24 • Units: 0 • Category: CAT 6A • Transmission properties: Category 6A, Class EA • Area of application: Up to 500 MHz, 10GBase-T • Norms: ISO/IEC 11801 2nd Ed., EN 50173-1, EIA/TIA 568-C, 802.3af, 802.3at PoE+ • General properties: • Suitable for 483 mm (19") cabinet mounting • RJ45 female, 8P8C • Cable installation via LSA strips, color coded according to EIA/TIA 568 A & B • Cable fixing with smart cable ties • Central ground connection • 360° shield coverage • Integrated dust cover • Mechanical properties: • Housing material: 1.5 mm galvanic cold rolled steel, acc. to EN1.4301, UNS S30400, AISI 304 and LMSAD110 • RJ45 female material: ABS UL 94V-0 • RJ45 female contact: Tinned phosphor bronze, 0.5 ? gold-plated contact • RJ45 shielding: Tinned bronze • LSA termination clamp: Krone LSA+, UL 94V-2, zinc plated phosphor bronze • Ground wire: Not included • Conductor plate: FR4, UL 94V-0 • Physical properties: • Insertion force: 30N max. (IEC 60603-7-5) • Retention strength: 7.7 kg between jack and plug • Operation temperature: -20° C to +70 °C (ISO/IEC 11801, EN 50173-1, ANSI/TIA/EIA 568 C) • Mating cycles female: > 750 acc. to ISO/IEC 11801, IEC 60603-7-5 • Clamp: > 200 acc. to ISO/IEC 11801, IEC 60603-7-5 • IDC wire size: 22 – 26 AWG solid and stranded conductor • Insulation resistance: > 500 MOhm • Contact resistance: < 20 MilliOhm • Dielectric strength: 1000 VDC (Contact/Contact), 1500 VDC (Contact/Ground) • Colour: Grey RAL7035
