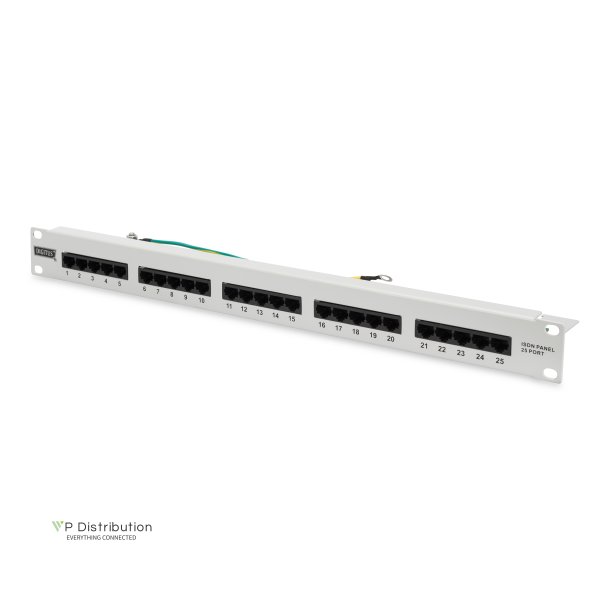

CAT 3 ISDN Patch Panel, unshielded, 25-port RJ45, 8P4C, LSA, 1U, rack mount, grey, 482x44x109

CAT 3 ISDN Patch Panel, unshielded, 25-port RJ45, 8P4C, LSA, 1U, rack mount, grey, 482x44x109

Du skal være logget ind for at kunne lave bestillinger

Varenr.: DN-91325-1
Leveringstid: Cirka. 2-4 dage i leveringstid
The ISDN Patch Panels from DIGITUS® are available as 25- or 50-port version. With 1.5 mm galvanized cold-rolled steel they are perfectly suitable for 19" rack mounting.
  • Beskrivelse
    • Color: light grey, RAL 7035 • Ports: 25 • Units: 1 • Category: CAT 3 • Suitable for 483 mm (19") rack mount • Suitable for cables with AWG 22-26 diameter • Material housing: SECC, 1.5 mm electrogalvanized, cold-rolled steel acc. EN1.4301, UNS S30400, AISI 304 and LMSAD110 • RJ45 female, 8P4C • Unshielded RJ45 jacks • Material contacts: Phosphor bronze • Contacts coating: Nickel, gold plated 0,3µ • Cable installation via LSA strips, color coded according to EIA/TIA 568 A & B • Material IDC Terminal: Phosphor bronze with 50 µ tin plated over 60 µ nickel plated • Material PCB: FR4, UL 94V-0, multilayer 1.45 mm thickness • Insertion force: ? 30 N • Mating cycles: ? 750 (ISO/IEC 11801, IEC 60603-7-5) • Operating temperature: -20°C ... +70°C • Current carrying capacity: 1A at 50 °C • Isolation resistance > 500MOhm • Color: Grey (RAL 7035)
