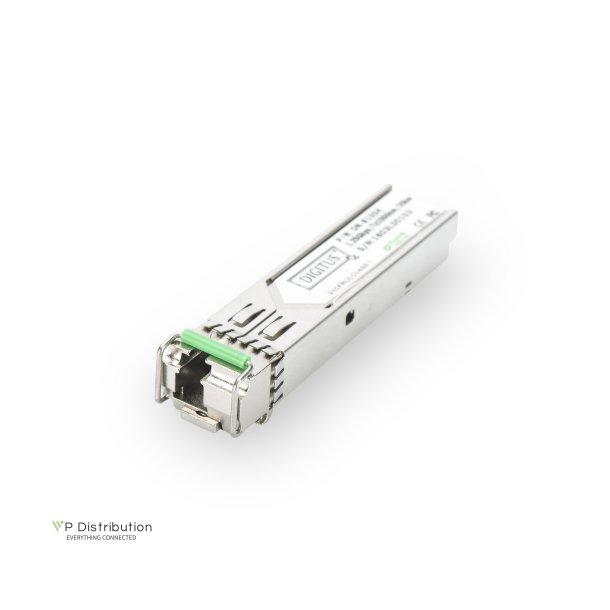

Digitus 1.25 Gbps SFP Module, Singlemode, BiDi, HP-comp. LC Simplex, Tx1550nm/Rx1310nm, up to 20km, HP

Digitus 1.25 Gbps SFP Module, Singlemode, BiDi, HP-comp. LC Simplex, Tx1550nm/Rx1310nm, up to 20km, HP

Du skal være logget ind for at kunne lave bestillinger

Varenr.: DN-81004-01
Leveringstid: Cirka. 2-4 dage i leveringstid
The DIGITUS® mini GBIC (SFP) transceiver modules offer highest quality and reliability. Wether from switch to switch, converter to switch, converter to converter or any else application: The wide product range of DIGITUS® modules makes possible a flexible usage of the fiber technology. The conformity to the MSA (Multi Source Agreement) standard ensures a compatibility to third party manufacturers.
  • Beskrivelse
    • Mode: Singlemode • Connector: LC • Distance (km): 20 • Wavelength: 1550/1310 nm • DDM Support: true • Broadcasting Mode: Biidirectional • Manufacturer compatibility: HP, Universal (MSA) • Ethernet speed: Gigabit • HP compatible • HP-Aruba compatible • Mini GBIC SFP (Small Form Factor Pluggable) module • Supports DDM (Digital Diagnostic Monitoring) • Bidirectional WDM Module - Only one fiber is needed • High quality and excellent reliability • 1.25 Gbps Maximum Data Rate • Compliant to IEEE 802.3z Gigabit Standard • Class 1 laser product compliant with EN 60825-1 • Easy plug-and-play installation • MSA (Multi Source Agreement) compliant • Hot pluggable • Connector: 1x LC Simplex • Wavelength: Tx 1550nm / Rx 1310nm • Transmission Power: Minimum -5 dBm, Maximum 0 dBm • Sensitivity receiving power: minimum -24 dBm • For a Distance of up to 20km • Suitable for 09/125µm Singlemode Fiber Cables • Safe fast-locking mechanism • 3.3V power supply • Suitable Module for Opposite Side: DN-81003 • Operating temperature: 0 °C ~ 70 °C • Compatible with the following manufacturers: Allied Telesis, Allnet, Avaya, CISCO, D-Link, Edimax, FINISAR, FORCE 10, Gigamon Intellinet, KTI Networks, Level One, PLANET, Tenda, TP-Link, TRENDnet,  Mikrotik , ENTERASYS, RIVERSTONE ,  Unifi, Ubiquiti, ZyXEL, ZTE
