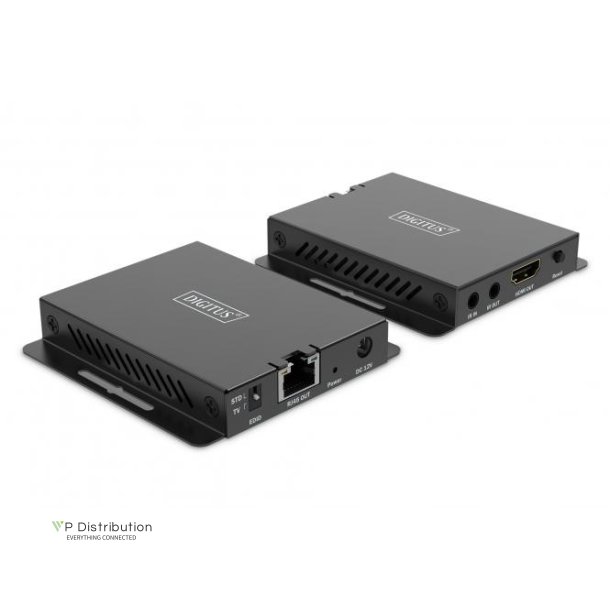

Digitus HDMI Extender Set 40 m, 4K/120Hz

Du skal være logget ind for at kunne lave bestillinger

Varenr.: DS-55342

Leveringstid: Cirka. 2-4 dage i leveringstid

The DIGITUS HDMI Extender Set enables HDMI signal transmission over a distance of up to 40 m (4K/120Hz, 4:4:4) using CAT 6 or higher cables. Its features also include bi-directional IR transmission, which enables flexible control of the signal source. It is also suitable for wall mounting, and therefore offers flexible installation options.

Beskrivelse

• HDTV Resolution max.: 7680 × 4320 Pixel, 60Hz • HDTV Standard: Ultra HD 8K • KVM: false • PoE (Power over Ethernet): false • Video connection ports: HDMI • Extends HDMI signals up to 10 m in 8K/60Hz - 5 m input (HDMI cable) + 5 m output (HDMI cable) • Extends HDMI signals up to 13 m in 4K/60Hz - 8 m input (HDMI cable) + 5 m output (HDMI cable) • Power supply via HDMI cable (signal source) thanks to special self-powered design • Optional (additional) power supply with enclosed USB-C cable if the setup requires • Max. resolution: 8K/60Hz (4:4:4) • Video bandwidth: 48 Gbps • HDMI 2.1 • Supports HDCP 2.3 • Supports Deep Color (36-bit) • Ultra-slim design • Supports compressed (e.g. DTS, Dolby Digital, etc.) and uncompressed audio formats (e.g. LPCM, etc.) • Connections: • 1x HDMI input (8K/60Hz) • 1x HDMI output (8K/60Hz) • 1x USB-C input (DC 5V) - Optional power supply • Operating temperature: 0-70° • Power consumption: approx. 1W • Housing: Metal • Dimensions (housing): L 5.0 x W 3.1 x H 1.5 cm • Weight: 40 g • Color: black

Downloads

Titel	Type	Størrelse	Download
DS-55342.pdf	PDF	982.57KB	Download
DS-55342_qig_en_English_20240617.pdf	PDF	284.40KB	Download
