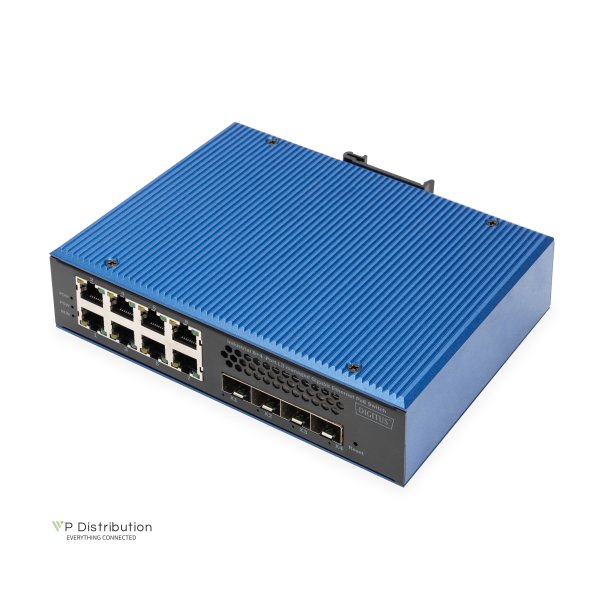

Digitus Ind. 8+4SFP+PortL3 managed Gigabit Ethernet PoE Sw 8 x GE RJ45 +4 SFP+ Port, PoE

Digitus Ind. 8+4SFP+PortL3 managed Gigabit Ethernet PoE Sw 8 x GE RJ45 +4 SFP+ Port, PoE

Du skal være logget ind for at kunne lave bestillinger

Varenr.: DN-651161
Leveringstid: Cirka. 2-4 dage i leveringstid
"The DN-651161 is a high performance L3 8 port RJ45 + 4 port SFP+ (10G) uplink industrial switch specifically designed to meet the needs of demanding network environments. With an impressive backplane data transfer rate of 1.2 terabits per second (1.2 Tbps), it enables lightning-fast and reliable communication between your devices. Whether you are in the manufacturing industry, industrial IoT or critical infrastructure, the DN-651161 is the perfect solution for stable and efficient network connectivity.
  • Beskrivelse
    • Number of ports: 8 • PoE standard: IEEE802.3af (PoE) • Ethernet speed: Gigabit • Power output: 24 W • Industrial usage: true • Managed: true • Number of ports (Uplink): 4 • Outdoorsuitable: false • PoE (Power over Ethernet): true • Protection against vanadlism: false • Uplink port connection: SFP • VLAN: true • Supports IEEE802.3x flow control and backpressure • Supports store-and-forward technology for optimized data transmission • Automatic detection/adjustment of speed and half/full duplex • Supports PoE according to standardIEEE802.3af/at (up to 30W) • Bandwidth: 1.2 Tbps • Packet forwarding size: 32 Mbit/s • Size of the MAC address table: 32 K • Jumbo frame rate : 10240 bytes • ESD protection: 8 kV • EFT protection: 8 kV • Metal housing, IP40 • 4 kV lightning and surge protection • Redundant power supply with reverse polarity protection function • Power supply: 48 to 56 V (DC) • Power consumption: < 18 W • Removable terminal connection • Protection class: IP40 • Dimensions: 175.6 x 135 x 45.5 mm • Weight: 0.8 kg • Operating temperature: -40 to 80 ° C • Storage temperature: -40 to 80° C • Humidity: 5% to 95% (non-condensing) • MTBF: 300,000 • Port functions: IEEE 802.3x flow control, interface counter, storm control, link aggregation, static aggregation, dynamic aggregation, LACP • Data control: Support for 802.3X full-duplex flow control, support for network storm suppression • Redundant network: support for STP/RSTP/MSTP, support for ERPS (self-healing time <20ms) • Multicast management: Support for IGMP Snooping V1/V2/V3 • Redundancy backup: supports the virtual route redundancy protocol VRRP • VLAN: Support of IEEE 802.1Q VLAN, effective isolation of the broadcast domain • Link aggregation: Supports static/dynamic link aggregation, offers perfect bandwidth utilization • QOS: Support for COS\DSCP, 4 queues, support for WRR\SP planning mode • System information: Global information, statistics, log, • Port management: port configuration, port isolation, port mirroring, port limit, storm control, EEE (Energy Efficiency Ethernet) • Basic Layer 2 management: MAC table, VLAN, GVRP, link aggregation, MSTP configuration, ERPS, Loop Protect, PTP, DHCP snooping, 802.1X • Layer 3 Config: Interface configuration, route configuration, ARP, ND configuration, DHCP server, DHCP relay, RIP, OSPF, RIPng, OSPFv3, • Multicast management: IGMP Snooping, MLD Snooping, IP Multicast, IGMP • Advanced setting: QOS, ACL, SNMP, RMON, LLDP, NTP, Secure • System management: user configuration, network, service configuration, configuration management, firmware upgrade, diagnostics, restart • Various other L2/ L3 functions • Total PoE budget: 200 W
