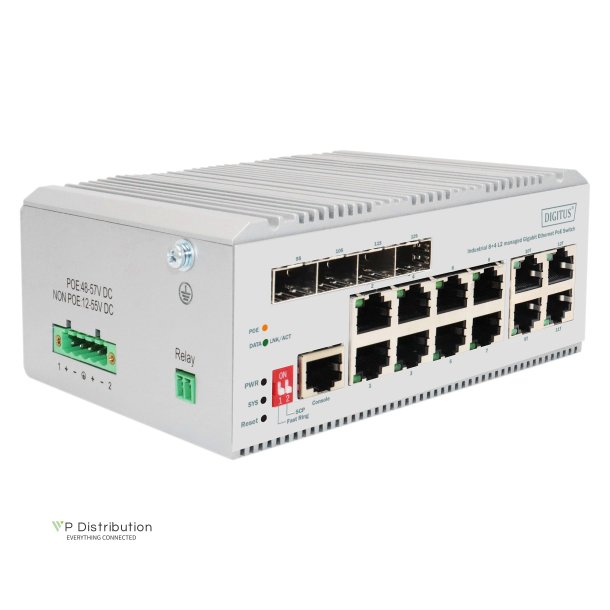

Digitus Industrial 8+4 L2 managed Gigabit Ethernet PoE Swi 8 Port PoE GE RJ45, 4 Port GE SFP

Digitus Industrial 8+4 L2 managed Gigabit Ethernet PoE Swi 8 Port PoE GE RJ45, 4 Port GE SFP

Du skal være logget ind for at kunne lave bestillinger

Varenr.: DN-651139
Leveringstid: Cirka. 2-4 dage i leveringstid
The DN-651139 Industrial network switch provide 8 x 10/100/1000Mbps RJ45 ports and 4 Gigabit Combo ports. The RJ45 ports from 1-8 support PoE power supply with a maximum of 30W for each port. DN-651139 offers excellent security policy, QoS policy, and rich VLAN function. Additionally, it has a ring network function that allows you to set up a ring network. With this feature, the switches form a ring network topology manually. The ring network is redundant, highly reliable, and won't affect data forwarding in case a link is broken. The device is designed with a no-fan, low power consumption design, making it easy to use, compact, and beautiful. It is also simple to install. The product meets Ethernet standards, has lightning protection, static protection mechanisms, and operates in a temperature range of -40°C to 75°C. This guarantees stable performance, safety, and reliability. V1 can be widely used in various broadband data transmission fields such as intelligent transportation, telecommunications, security, financial securities, customs, among others.
  • Beskrivelse
    • Number of ports: 8 • PoE standard: IEEE802.3at (PoE+) • Industrial usage: true • Managed: true • Number of ports (Uplink): 4 • Outdoorsuitable: false • PoE (Power over Ethernet): true • Protection against vanadlism: false • VLAN: true • Supported standards: IEEE 802.3,IEEE 802.3u,IEEE 802.3ab,IEEE 802.3z,IEEE 802.3x,IEEE 802.1X,IEEE 802.1q,IEEE 802.1p,IEEE 802.1d,IEEE 802.1w,IEEE 802.3ad, IEEE802.3af,IEEE802.3at • Interface: 8*10/100/1000Mbps RJ45 ports, 4*10/100/1000Mbps combo, 1 console port • Indicator: PWR, LNK/ACT, PoE, SYS • Network media: 10BASE-T: UTP category 3, 4, 5 cable (?100m), 100BASE-TX: UTP category 5, 5e cable (?100m), 1000BASE-T: UTP category 5e, 5 cable (?100m), 1000BASE-X: MMF, SMF • MAC address table: 8K, auto-learning, auto-update • Jumbo Frame: 9216byte • Packet buffer: 4.1M Bit • Transfer mode: Save-and-forward • Packet forwarding speed: 17.86Mpps • Switching capacity: 24Gbps • Dimensions: (length*width*height): 145*109*62mm • Number of fans: Fanless • Power supply: 200W • PoE power budget: 185W • PoE connection: Connection1~8 • PoE power on RJ45: Mode A 1/2(-),3/6(+) • PoE power output: 30W(MAX) • Green energy saving: IEEE 802.3az • Input power supply: DC:48-57V • Operating temperature: -40°C ~ 75 °C • Storage temperature: -40°C ~ 80 °C • Humidity during operation: 5% ~ 95% non-condensing • Humidity during storage: 0% ~ 95% non-condensing • Overvoltage protection: differential mode ±2KV, common mode ±6KV • MTBF: >100000 hours • Electrostatic standard: contact ±6KV , air ±8KV • Software specification: Spanning Tree, IEEE 802.1D -Spanning Tree, IEEE 802.1w -Rapid Spanning Tree, IEEE 802.1s -Multiple Spanning Tree, BPDU Guard, STP Root Guard, Loop Detection • VLAN: Management: VLAN, Private VLAN, Voice VLAN, Surveillance VLAN, Q-in-Q (Double Tag), 802.1v Protocol VLAN, MAC-Based VLAN, Port IEEE 802.3ad witch LACP(Dynamic), Static Trunk EEE, Jumbo Frame, Error-Disable, IGMP Snooping: IGMP Snooping v1/v2/v3, MLD Snooping v1/v2, MVR, QoS Features, Hardware Queues, Class Of Service, Port Based, 802.1p,CoS, DSCP, IP Precedence, TCP/UDP (IPv4/IPv6), Rate Limiting Ingress Egress, Priority Queue Scheduling, WRR, Strict Priority, DSCP & CS, IPv4 QoS (QCEs) • L2+/L3/L4, IPv6 support, Management Access List, Management ACL/Management ACE, IP Source Guard (IP-MAC-Port-VALN binding) • IP Source Guard (IP-MAC port binding), dynamic ARP checking, storm control, RADIUS/TACACS+, RADIUS authentication (RFC2138), DDoS prevention, HTTPs and SSL (secured web), SSH v1.5/v2.0 (secured Telnet session) • DHCP snooping, DHCP relay, administration, SNMP (v1, v2c, v3), RMON ( 1,2,3 & 9 groups), software upgrade, configuration export/import • Event/error protocol: Syslog, management access filtering, console, SNMP, HTTP/HTTPS, Telnet, port mirroring, LLDP (IEEE802.1AB), LLDP-MED, UDLD, DNS client, traceroute, ping, cable test, DDMI, NTP/ SNTP (RFC2030) • IPv6 support: Dual IPv6/IPv4 stack, IPv6 Web/SSL, IPv6 SNTP (Simple Network Time Protocol), IPv6 Telnet / SSH, IPv6 Ping/Trace Route, IPv6 TFTP, IPv6 RADIUS/TACACS+, IPv6 SNMP, • PoE management: port configuration, alive check for PD
