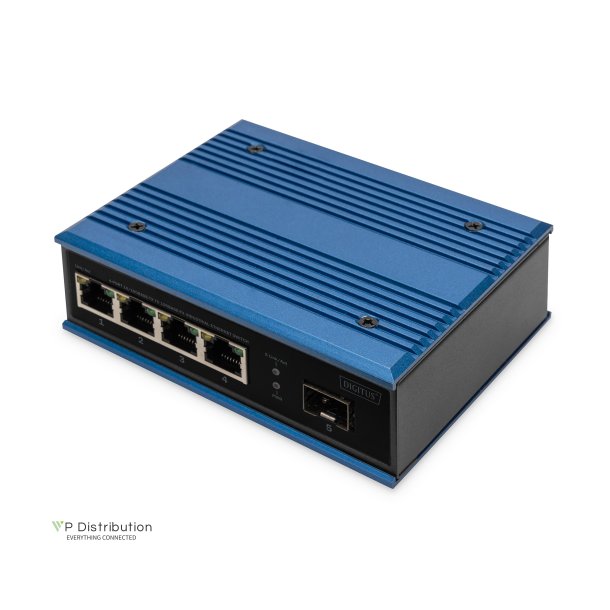

Digitus Industrial 4+1 Port Fast Ethernet Switch Unmanaged, 4 RJ45 Ports 10/100 Mbits

Digitus Industrial 4+1 Port Fast Ethernet Switch Unmanaged, 4 RJ45 Ports 10/100 Mbits

Du skal være logget ind for at kunne lave bestillinger

Varenr.: DN-651130
Leveringstid: Cirka. 2-4 dage i leveringstid
DN-651130 is an industrial Fast Ethernet switch with 4 port 10/100 Mbps RJ45 +1 port 100 Mbps base-FX. The industrial switch has the operating temperature of -40? ~ 80?, is ruggedized and can be used in all kinds of harsh environments. The switch can be easily installed on a free DIN rail. The wide temperature range, IP40-rated housing and LED indicator make the DN-651130 an industrial-grade plug-and-play device that provides users with a reliable and convenient solution for networking their Ethernet devices.
  • Beskrivelse
    • Number of ports: 4 • Ethernet speed: Fast Ethernet • Industrial usage: true • Installation type: DIN rail • Managed: false • Number of ports (Uplink): 1 • Outdoorsuitable: false • PoE (Power over Ethernet): false • Protection against vanadlism: false • Uplink port connection: SFP • VLAN: false • 4 ports 10/100Base-Tx RJ45 with auto-negotiation and Auto-MDI/ MDI-X function • 1-port 100 Base-Fx interface SFP • 12V to 48V DC, redundant power connection possible • Operating temperature: - 40? to 80? • IP40 aluminum housing • Supports 6KV DC Ethernet ESD protection • Supports 6KV DC EFT protection for the power line • Vibration, shock and drop protection • Performance specification: Bandwidth: 1.6Gbps, Packet buffer memory: 1Mbit, Packet forwarding rate: 1.2Mpps, MAC address table: 2K • Flow control: utilizes backpressure technology for half-duplex, utilizes "pause frame" technology in full-duplex mode • Housing: aluminum housing with protection class IP40 • LED display: Power: Red, Fiber: Link 2(Green), Ethernet: Yellow • Power input: 12 to 48V DC, it is possible to install a redundant power supply • Power consumption: < 3 watts • Network protocols: IEEE802.3 10BASE-T; IEEE802.3i 10Base-T; IEEE802.3u;100Base-TX/FX; • Industry standard: FCC CFR47 Part 15, EN55022/CISPR22, Class A, IEC61000-4-2 (ESD): ±8kV (contact), ±12kV (air), IEC61000-4-3 (RS): 10V/m (80~1000MHz), IEC61000-4-4 (EFT): power connection: ±4kV; data connection: ±2kV, IEC61000-4-5 (overvoltage) • Dimensions (W x D x H): 118 x 92.4 x 40 mm • Product weight: 0.48 kg • Working environment: Operating temperature: -40 to max 80?; Storage temperature: -40 to max 80? • Relative humidity: 5% to max. 95% (no condensation)
