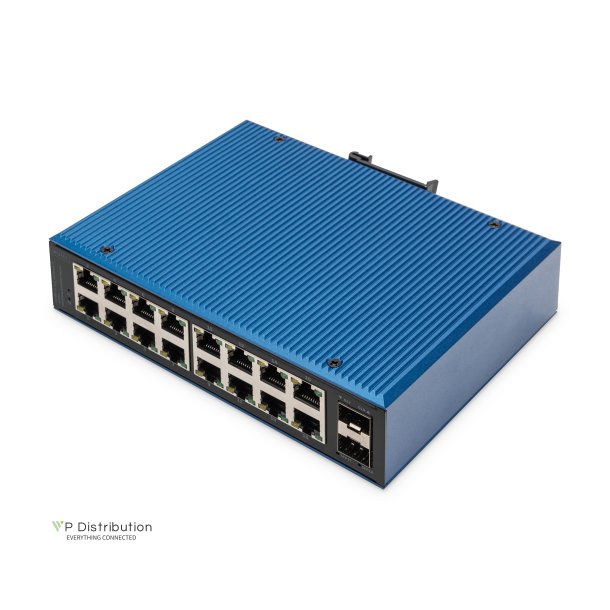

Digitus Industrial 16+2 -Port Gigabit Ethernet Switch Unmanaged, 16 RJ45 Ports 10/100/1000 Mbits

Digitus Industrial 16+2 -Port Gigabit Ethernet Switch Unmanaged, 16 RJ45 Ports 10/100/1000 Mbits

Du skal være logget ind for at kunne lave bestillinger

Varenr.: DN-651138
Leveringstid: Cirka. 2-4 dage i leveringstid
DN-651138 is a Industrial PoE Ethernet Switch with 16-Port 10/100/1000Mbps RJ45 +2 Port Gigabit SFP. The industrial graded switch has the operating temperature of -40? ~ 80?, has the super firmness can adapt to all kinds of harsh environment, can also be conveniently placed in the compact space of the control box. The installation characteristics of the guide rail, wide temperature operation, IP40 protection class housing and LED indicator light make the DN-651138 a plug and play industrial grade device, providing a reliable and convenient solution for users to network their Ethernet devices.
  • Beskrivelse
    • Number of ports: 16 • Ethernet speed: Gigabit • Industrial usage: true • Managed: false • Number of ports (Uplink): 2 • Outdoorsuitable: false • PoE (Power over Ethernet): false • Protection against vanadlism: false • Uplink port connection: SFP • VLAN: false • 16-port 10/100/1000Base-Tx RJ-45 with auto negotiation and auto-MDI/ MDI-X function • 2-Port SFP uplink • -40? to 80? operating temperature • Enclosure: IP40 aluminum housing • Supports Air discharge: ±12kV • Contact discharge: ±8kV • Free Fall, Shock and Vibration Stability • DIN-rail hardware design • Performance Specification: Bandwidth: 52Gbps, Packet Buffer Memory: 4.1Mbit, Packet Forwarding Rate: 38.7Mpps, MAC Address Table: 8K • Flow Control: Back pressure for half duplex, IEEE 802.3x pause frame for full duplex • LED Indicator: Power: Red, Ethernet: Yellow • Power Input: 12 to 57V DC redundant power • Power Consumption: 10 watts • Network Protocols: IEEE802.3 10BASE-T; IEEE802.3i 10Base-T; IEEE802.3u;100Base-TX/FX; • Network cables: 10BASE-T: Cat3,4,5 UTP(?100 meter), 100BASE-TX: Cat5 or later UTP(?100meter) • Indusrty Strandard: Free fall: IEC 60068-2-32; Vibration: IEC 60068-2-6 • Dimensions (W x D x H): 175.6 x 135 x 45.5 mm • Weight: Product Weight: 1.0KGS • Working Environment: working temperature: -40?80? ;Storage temperature: -40?80? • Relative Humidity: 5%~95 % ( no condensation) • Relative humidity: 5% to max. 95% (non-condensing)
