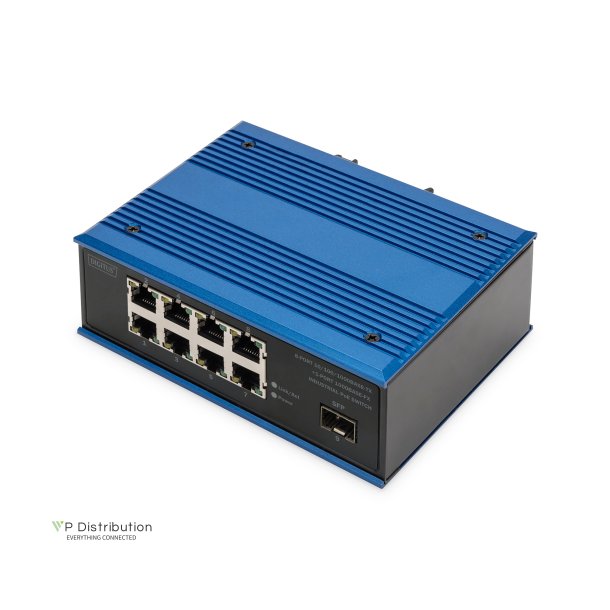

Digitus Industrial 8+1 -Port Gigabit Ethernet PoE Switch Unmanaged, 8 RJ45 Ports 10/100/1000 Mbits

Digitus Industrial 8+1 -Port Gigabit Ethernet PoE Switch Unmanaged, 8 RJ45 Ports 10/100/1000 Mbits

Du skal være logget ind for at kunne lave bestillinger

Varenr.: DN-651137
Leveringstid: Cirka. 2-4 dage i leveringstid
DN-651137 is an industrial Gigabit Ethernet PoE switch with 8 port 10/100/1000 Mbps RJ45 +1000 Mbps SX . The industrial switch has the operating temperature of -40? ~ 80?, has been ruggedized and can be used in all kinds of harsh environments. The switch can be easily installed on a free DIN rail. The wide temperature range, IP40-rated housing and LED indicator make the DN-651137 an industrial-grade plug-and-play device that provides users with a reliable and convenient solution for networking their Ethernet devices.
  • Beskrivelse
    • Number of ports: 8 • PoE standard: IEEE802.3af (PoE) • Ethernet speed: Gigabit • Industrial usage: true • Managed: false • Number of ports (Uplink): 1 • Outdoorsuitable: false • PoE (Power over Ethernet): true • Protection against vanadlism: false • Uplink port connection: SFP • VLAN: false • 8 ports 10/100/1000 Base-Tx RJ45 with autonegotiation and Auto-MDI/ MDI-X function, PoE IEEE 802.3af/at (up to 30W) • 1-port 1000 SX • 48V to 57V DC, redundant power connection possible • Operating temperature: - 40? to 80? • IP40 aluminum housing • Supports 6KV DC Ethernet ESD protection • Supports 6KV DC EFT protection for the power line • Vibration, shock and drop protection • Easy installation on DIN rail • Performance specification: Bandwidth: 20Gbps, Packet buffer memory: 2Mbit, Packet forwarding rate: 15Mpps, MAC address table: 4K • Flow control: utilizes backpressure technology for half-duplex, utilizes "pause frame" technology in full-duplex mode • Housing: aluminum housing with protection class IP40 • LED display: Power: Red, Fiber: Link 2(Green), Ethernet: Yellow • Power input: 48 to 57V DC, it is possible to install a redundant power supply • Power consumption: <8 watts • Network protocols: IEEE802.3 10BASE-T; IEEE802.3i 10Base-T; IEEE802.3u;100Base-TX/FX; IEEE802.3ab 1000Base-T; IEEE802.3z 1000Base-X; IEEE802.3x • Industry standard: FCC CFR47 Part 15, EN55022/CISPR22, Class A, IEC61000-4-2 (ESD): ±8kV (contact), ±12kV (air), IEC61000-4-3 (RS): 10V/m (80~1000MHz), IEC61000-4-4 (EFT): power connection: ±4kV; data connection: ±2kV, IEC61000-4-5 (overvoltage) • Dimensions (W x D x H): 142.5 x 107.1 x 53.5 mm • Weight: Product weight: 0.8kg • Working environment: Operating temperature: -40 to max 80?; Storage temperature: -40 to max 80? • Relative humidity: 5% to max. 95% (no condensation) • Total PoE power budget (W): 200 W
