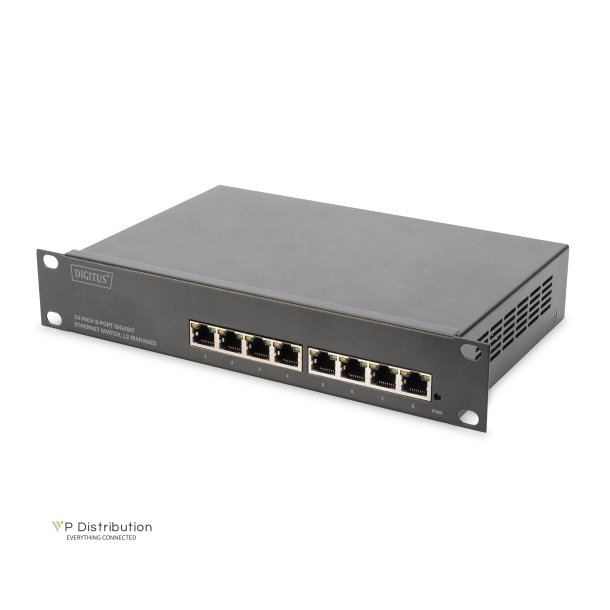

Digitus L2 managed Gigabit Ethernet Switch 8-port, 10 inch

Digitus L2 managed Gigabit Ethernet Switch 8-port, 10 inch

Du skal være logget ind for at kunne lave bestillinger

Varenr.: DN-80117
Leveringstid: Cirka. 2-4 dage i leveringstid
The 8-port Gigabit L2+ Switch is designed for the networks of small to mid-sized companies. With special features such as port control, port mirroring, VLAN functions and multicast support, the switch is optimally tailored to the application convergence needs of mid-sized networks. Based on ASIC integration technology, non-blocking IP switching solutions are supported with gigabit speed. The switch can be used as a desktop switch or for installation in 10-inch housing. 8 gigabit ports are integrated that can be configured for specific requirements using various interfaces. The installation height is one rack unit.
  • Beskrivelse
    • Number of ports: 8 • Ethernet speed: Gigabit • Industrial usage: false • Installation type: 10 inch, Desktop • Managed: true • Outdoorsuitable: false • PoE (Power over Ethernet): false • Protection against vanadlism: false • VLAN: true • Number of ports: 8 x 10/100/1000Base-TX RJ45 • Standards: IEEE802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3x full-duplex flow control, IEEE802.3ab link aggregation • Forwarding rate: 10/100/1000 Mbps • LED displays: Power, Link/Act • Backplane bandwidth: 16G • Forwarding capacity: 11.9 Mpps • Jumbo frame size: 16 K • MAC addresses: 8K • Port features: Port Control, Port Isolation, Port Loop Detection • Port mirroring: Multi to 1 Sniffer • VLAN: Port-based & 802.1q Tag-based VLANs • Link aggregation: 8 groups • Rate limit: 64kbps • Spanning tree: Supports STP, RSTP, MSTP • Ring protocol: Supports EAPS • Multicast: Supports 256 multicast groups & IGMP snooping for multimedia applications • Supports Static ARP & Static Routing, up to 32 VLAN interfaces • QoS: 4 lines per port, scheduling algorithm: WRR, SP, WFQ, port-based, MAC-based, 802.1p, DSCP classification • ACL: Standard IP, Extend IP, MAC IP, ARP, 512 entries • Security: MAC-based authentication, AAA/RADIUS authentication, WEB/Telnet password protection, Accessing privilege mode password protection • Supports SMNP • Supports ICMPv6, IPv6 Neighbor Discovery, MLD Snooping, IPv6 Telnet • Management interfaces: WEB, SNMP, CLI, Telnet, TACACS+, RMON • Power consumption: 15W max. • Operating voltage: 100 - 240 V AC, 50/60 Hz, integrated power adapter (IEC C13 plug for non-heating appliances) • Operating temperature: 0 °C to 40 °C • Storage temperature: -10 °C to +70 °C • Operating humidity: 20% - 85% (non condensing) • Housing: Metal (with protective conductor terminal) • Dimensions: W 250 x D 150 x H 44 mm • Weight: 1.140 kg (without packaging)
