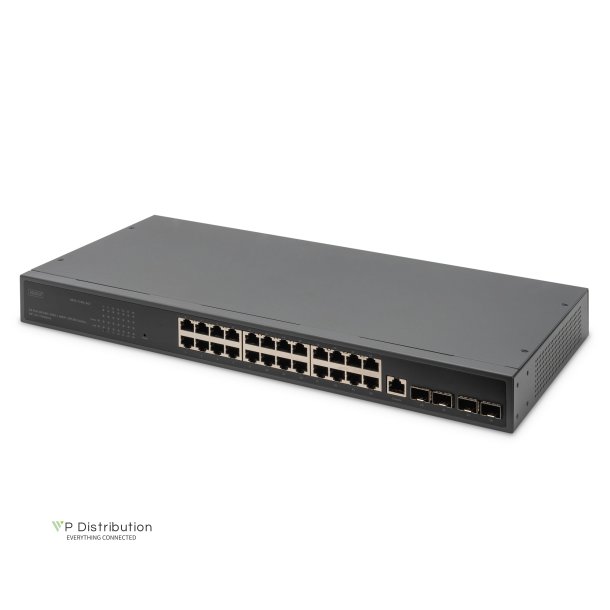

Digitus 24 Port GE 4 SFP+ UPLINK L2+ Switch 24 Port 10/100/1000+4SFP+ UPLINK Switch

Digitus 24 Port GE 4 SFP+ UPLINK L2+ Switch 24 Port 10/100/1000+4SFP+ UPLINK Switch

Du skal være logget ind for at kunne lave bestillinger

Varenr.: DN-80223
Leveringstid: Cirka. 2-4 dage i leveringstid
Digitus DN-80223, with its 24 Gigabit RJ45 port and four independent SFP + fiber expansion slot, is ideal for connecting local networks to data centers. Equipped with 4 * 10G SFP+ slot, flexibly expand your network. The 10G uplink switch provides high performance, enterprise QoS, advanced security policies and comprehensive layer 2+ management features. With all these advanced features, the switch is powerful and flexible enough to meet almost all IT needs.
  • Beskrivelse
    • Industrial usage: false • Installation type: 19 inch • Managed: true • Outdoorsuitable: false • PoE (Power over Ethernet): false • Protection against vanadlism: false • VLAN: true • Standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3x, IEEE 802.1X, IEEE 802.1q, IEEE 802.1p, IEEE 802.1d, IEEE 802.1w,IEEE 802.3ad • Interface: 24*10/100/1000Mbps RJ45 Port, 4* 10G SFP+ Slots, 1*Console • Indicator: PWR, LINK/ACT, SYS • Network media: 10BASE-T: UTP category 3,4,5 cable??100m?, 100BASE-TX: UTP category 5, 5e cable??100m?,1000BASE-T: UTP category 5e, 5 cable??100m? 1000BASE-X: MMF, SMF, 10GBASE-X: MMF, SMF • MAC Address Table: 16K, Auto-learning, Auto-aging • jumbo frame: 12K Bytes • Transfer Mode: Store-and-forward • Packet Forward Speed: 95.23Mpps • Switching Capacity:128Gbps • Packet buffer: 12Mbit • Dimensions(L*W*H): 440*260*44mm • Fan Quantity: Fanless • Green energy saving: IEEE 802.3az • Power supply: 24W • Input Power Supply: 12V/2A • Operating Temperature: 0°C ~ 40 °C • Storage Temperature:-40 °C ~ 70 °C • Operating Humidity: 10% ~ 90% non-condensing • Storage Humidity: 5% ~ 90% non-condensing • System Settings: Basic information, system status, user management,SNTP configuration, importing/exporting configuration files, firmware upgrade • Port Settings: Basic configuration, port statistics, Broadcast Storm, Port Rate limiting, Port security, link aggregation, port Mirroring, and port Isolation, Port aggregation,Load balancing, static aggregation, LACP • MAC binding: MAC static binding, dynamic learning, MAC binding automatic conversion, MAC aging and learning restriction, and MAC filtering • VLAN configuration: VLAN information, VLAN configuration, VLAN port configuration, Voice VLAN, QinQ, Guest-VLAN, GVRP, MVR • ARP: IP Source Guard, ARP Check, gratuitous-ARP, ARP defense, DAI, tri-binding • DHCP: IPV4/IPV6 DHCP Snooping, DHCP Server, DHCP Relay • STP: STP/MSTP/RSTP, PortFast?Root Guard, Bpdu Guard • SNMP configuration: SNMP community, SNMP view, SNMP TRAP, SNMP(V1,V2C,V3) • RMON configuration: RMON(1,2,3,9) • ACL configuration: Standard ACLs, ipv6-based ACLs, extended ACLs, Mac-based ACLs, expert ACLs, and time-range ACLs • QOS configuration: QOS Application, QOS Scheduling Strategy, Queue Mapping (DSCP&CoS) • IGMP Snooping configuration: IGMP SNOOPING configuration, multicast group information, IGMP SNOOPING VLAN, IGMP SNOOPING (V1,V2,V3)? • ERPS: ERPS configuration, ERPS mode, ERPS role • LLDP: LLDP TLV configuration to view neighbor information • Error-Disable: Error-Disable, Loopback-detection • Web tools: Ping/Ping6, Traceroute/Traceroute 6, cable detection • Log management: Log management and Debug information
