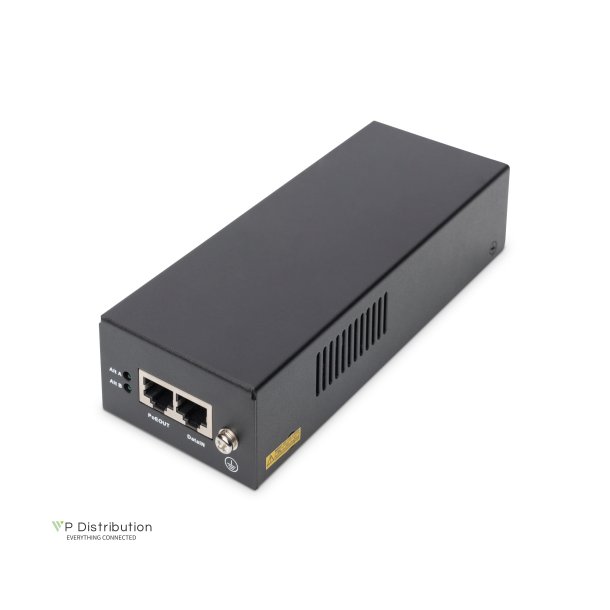

Digitus Gigabit Ethernet PoE++ Injector, 802.3bt Power pins: 4/5(+),7/8(-) and 3/6(+), 1/2(-), 85W

Digitus Gigabit Ethernet PoE++ Injector, 802.3bt Power pins: 4/5(+),7/8(-) and 3/6(+), 1/2(-), 85W

Du skal være logget ind for at kunne lave bestillinger

Varenr.: DN-95109
Leveringstid: Cirka. 2-4 dage i leveringstid
The 802.3bt injector from DIGITUS® offers an 85 watt PoE port as a midspan solution. Compact, cost-effective and fully IEEE802.3bt-compliant. The simple solution for remote power supply of wireless access points, IP security camera, VoIP phones, thin clients and other installations with PoE functionality. PoE+/PoE++ compatible devices can be supplied with power and data using the network cable, a secure and reliable solution for expanding the existing network infrastructure. The injector detects various PoE modes (A/B)- Plug & Play.
  • Beskrivelse
    • Number of ports: 1 • PoE Power budget: 85 W • PoE standard: IEEE802.3bt (PoE++) • Ethernet speed: Gigabit • Industrial usage: false • Supports 10/100/1000 Base-T applications • Supports standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt • LED display: Power input / PoE output • PoE output: 85 W (PoE++ via 4 strand pairs) • For distances of up to 100 m • LED operating display • Integrated power connection for non-heating appliances (C6) • Excess voltage and short circuit protection • Automatic detection of PoE devices / PoE modes • Power supply: 100 - 240 VAC / 50/60 Hz • Total power consumption: 90 W max. • PoE voltage: 56 VDC / 1.5 A • PIN assignment: Mode A: V+ (RJ45 Pin 3, 6), V- (RJ45 Pin 1, 2) / Mode B: V+ (RJ45 Pin 4/5), V- (RJ45 Pin 7/8) • Operating temperature: 0 to 40°C • Storage temperature: -10 °C to 70 °C • Operating humidity: 5 - 95% (non condensing) • Dimensions: 180 x 65 x 40 mm (LxWxH) • Weight: 0.6 kg
