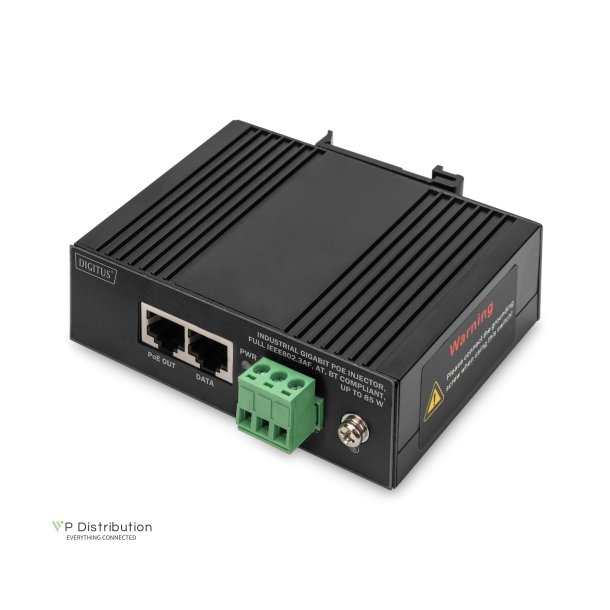

Digitus Industrial Gigabit PoE Injector FullIEEE802.3af,at,bt Compliant, up to 85 W

Digitus Industrial Gigabit PoE Injector FullIEEE802.3af,at,bt Compliant, up to 85 W

Du skal være logget ind for at kunne lave bestillinger

Varenr.: DN-651141
Leveringstid: Cirka. 2-4 dage i leveringstid
The DN-651141 is a single port Mid-spans offer a compact and cost effective, fully IEEE802.3bt compliant solution for remote powering of wireless LAN (WAN) access points, IP Security cameras, VoIP telephone and other low port density installations. The DN-651141 PoE Mid-spans eliminate the need for external power supply and its associated AC/DC power cabling, providing a compact, affordable, safe and reliable power solution over existing Ethernet infrastructure.
  • Beskrivelse
    • Industrial usage: false • Managed: false • Outdoorsuitable: false • PoE (Power over Ethernet): false • Protection against vanadlism: false • VLAN: false • No. of Ports: 1 • Pass Through Data Rates: 10/100/1000Mbps • Power over Ethernet Output: Pin Assignment and Polarity: Alternative A: V+ (RJ45 Pin3,6), V- (RJ45 Pin 1,2), Alternative B : V+ (RJ45 Pin4,5), V- (RJ45 Pin 7,8), User Port Power: 84W max • Input Power Requirements: DC Input Voltage: 45 to 56 VDC • Indicators: System Indicator: DC Power • User Indicator: Channel Power • Connectors: Shielded RJ-45, EIA 568A and 568B • Regulatory Compliance: IEEE802.3af, IEEE802.3at, IEEE802.3bt type3, IEEE802.3bt type4 • Full IEEE802.3af, IEEE802.3at, IEEE802.3bt Compliant • Up to 85W of Power on 4-pairs • Auto-detect of IEEE802.3af, IEEE802.3at, IEEE802.3bt PD • Supports 10/100/1000Base-T applications • LED indicators power input and PoE output indication • Distance up to 100 meters • DC Input 45~56V • DIN-Rail installation • Wide operating temperature: -40 ~ +75? • Environmental Conditions:Operating Ambient Temperature: -40 ~ +75? • Operating Humidity: 90%, Non-condensing • Storage Temperature:-40 to 75? • Storage Humidity: 95%, Non-condensing • Dimension (W x D x H): 103 x 78 x 32 mm • Weight: 295g
