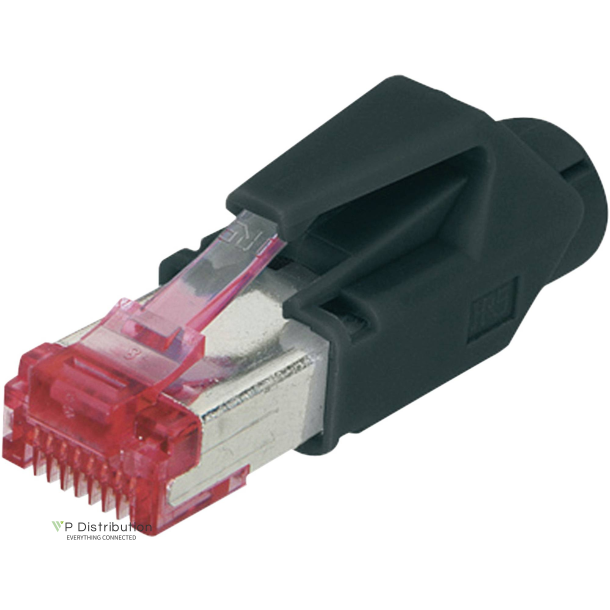

CAT 6 modular RJ45 plug, Hirose TM21 8P8C, shielded, for round cable, incl. hood

Du skal være logget ind for at kunne lave bestillinger

Varenr.: A-MO6 8/8 HRS

Leveringstid: Cirka. 2-4 dage i leveringstid

These modular plugs can be used to establish quick and simple connections.

Beskrivelse

• Easy assembly by modular crimping tool DN-94008 • Layout performance: CAT 6, 1GBase-T • Area of application: Patch cable assembly • General properties: • Fully shielded with strain relief for installation cables • Incl. comb • Technical properties: • Mating cycles: ? 750 (ISO/IEC 11801, IEC 60603-7-5) • Material connector body: Polycarbonat, clear • Connector contact: Phosphor bronze, brass 0.8 ? gold-plated • Material shielding housing: Brass 0.5 mm, 2 ? nickel-plated • Flammability: UL 94V-2 • Physical properties: • Insertion force: 30N max. (IEC 60603-7-5) • Diameter Cu-Conductor: AWG (27/7 ... 24/7) • Operating temperature: -20 °C to +60 °C • Current carrying capacity: 1A at 50 °C • Diameter outer jacket: 5,5 ... 6,2mm
