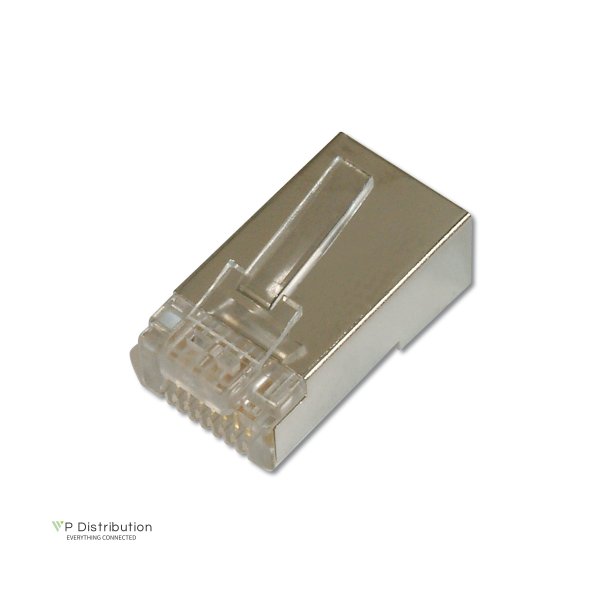

Modular Plug, for round cable, 8P8C, CAT 5 shielded, pass through connector

Du skal være logget ind for at kunne lave bestillinger

Varenr.: A-MO 8/8 SRS

Leveringstid: Cirka. 2-4 dage i leveringstid

These modular plugs can be used to establish quick and simple connections.

Beskrivelse

• Crimping tool – DN-94025 (Multi Modular Crimping Tool Pass through connectors) • Layout performance: CAT 5e, 10/100Base-T, 1GBase-T • Area of application: Patch cable assembly • Norms: ISO/IEC 11801 3rd Ed., EN 50173-1, EIA/TIA 568-C • General properties: • UL certified • Technical properties: • Mating cycles female: > 750 acc. to ISO/IEC 11801, IEC 60603-7-5 • Material connector body: Polycarbonat, clear • Connector contact: Phosphor bronze, brass 0.6 ? gold-plated • Flammability: UL 94V-2 • Physical properties: • Insertion force: ? 30 N • Diameter Cu-Conductor: AWG (27/7 ... 24/7) • Operating temperature: -40 °C to +80 °C • Current carrying capacity: 1A -1.5A at 50 °C
