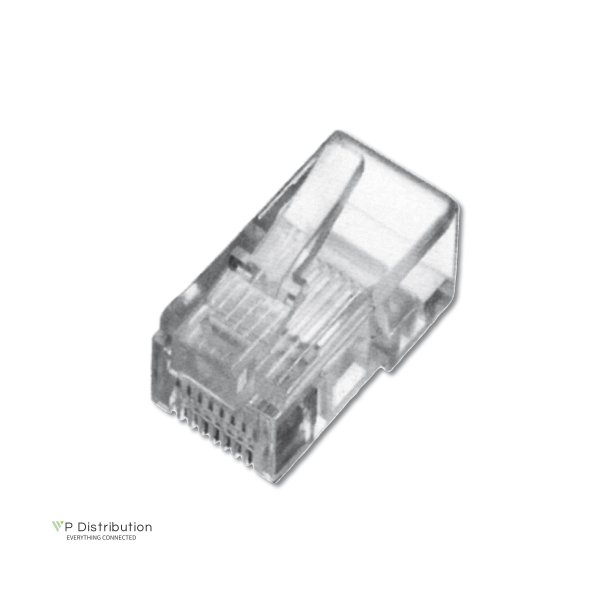

Modular Plug, for Flat Cable, 8P8C unshielded, ASS 0512 CO

Du skal være logget ind for at kunne lave bestillinger

Varenr.: A-MO 8/8 SF

Leveringstid: Cirka. 2-4 dage i leveringstid

These modular plugs can be used to establish quick and simple connections.

Beskrivelse

• Layout performance: CAT 3, 1GBase-T • Area of application: Patch cable assembly • Norms: ISO/IEC 11801 3rd Ed., EN 50173-1, EIA/TIA 568-C • General properties: • UL certified • Technical properties: • Mating cycles female: > 750 acc. to ISO/IEC 11801, IEC 60603-7-5 • Material connector body: Polycarbonat, clear • Connector contact: Phosphor bronze, brass 0.6 ? gold-plated • Flammability: UL 94V-2 • Physical properties: • Insertion force: ? 20N • Diameter Cu-Conductor: AWG (27/7 ... 24/7) • Operating temperature: -40 °C to +80 °C • Current carrying capacity: 1A -1.5A at 50 °C
