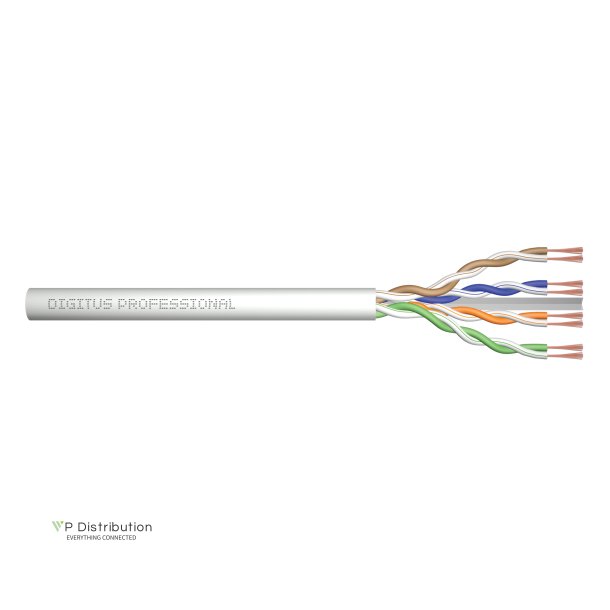

CAT 6A U-UTP patch cable, raw length 100 m, paper box, AWG 26/7, LSZH, sx, grey

CAT 6A U-UTP patch cable, raw length 100 m, paper box, AWG 26/7, LSZH, sx, grey

Du skal være logget ind for at kunne lave bestillinger

Varenr.: DK-1613-A-P-1
Leveringstid: Cirka. 2-4 dage i leveringstid
The raw patch cords are manufactured and tested acc. to the ISO/IEC 11801 and DIN EN 50173 specifications. They will guarantee that the installed cabling system is compliant with the ISO & EN channel specification requirements and therefore provide optimum performance levels for your cablings.The raw patch cords are suitable for the direct assembly of RJ45 connector in order to produce patch cords.
  • Beskrivelse
    • Assortment: Twisted Pair Patch Cables • Category: CAT 6A • Shielding: U-UTP, unshielded • Length: 100 m • Color: grey • Jacket: LSOH • Slim Version: false • Structure: 4 x 2 AWG 26/7, twisted pair • Flat Version: false • Insulation: HD-PE • Outer sheath diameter: 0.55 mm nominal • Overall diameter: 5.5 mm nominal • Tensile loading: 150 N max. • Dynamic bending radius: 8x AD mm min. • Static bending radius: 4x AD mm min. • Shipping- and storage temperature range: -10 °C up to +75 °C • Operating temperature range: -10 °C up to +60 °C • Installation temperature range: 0 °C up to +50 °C • DC loop resistance: ? 280 ? km • Resistance unbalance ? 2% • Insulation resistance: ? 2000M?/km @500V • Capacitance: nom. 48 nF/km @ 800 Hz • Capacitance unbalance (pair-ground): ? 1500 nF/km • Characeristic Impedance: 100 ± 15 Ohm @ 10-100 MHz • NVP: 67% • Propagation delay: nom. ? 555 ns/100 m • Delay skew: nom. ? 50 ns/ 100 m • Test voltage (DC 1 min) core/core: 1000V • Coupling attenuation: ? 40 dB • Capacitance: 48 pF/m nominal @ 800 Hz • Capacitance unbalance (pair-ground): 1.5 pF/m max. @ 1 KHz • Insulation resistance: 2 GOhm x km min. • DC loop resistance: 147 Ohm/Km max. (2% max. resistance unbalance) • Voltage resistance: 72 Vdc max. • Coupling attenuation: 40 dB • Signal propagation delay: 450 nS/100 m max. • Propagation delay: 20 nS/100 m max.
  • Specifikationer
    Farve Grey
    Længde 100m
    Cable Standard Cat6a
