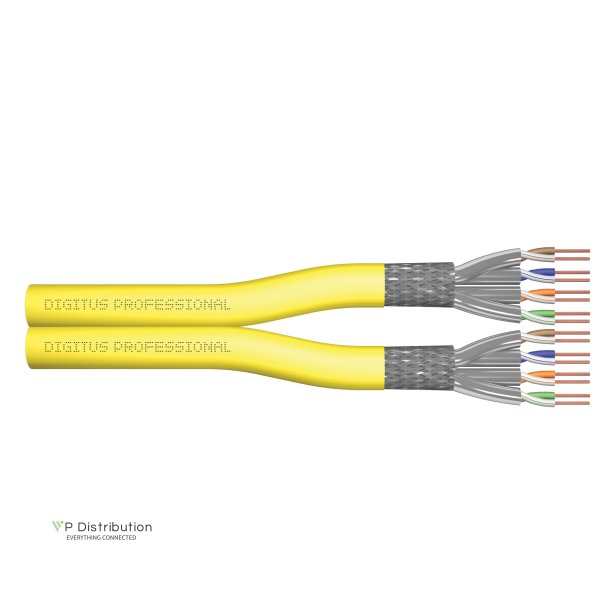

CAT 7A S-FTP installation cable, 1500 MHz B2ca (EN 50575), AWG 22/1, 500 m drum, dx, yellow

• Assortment: Twisted Pair Installation Cables • Category: CAT 7A • Shielding: S-FTP, pairs in metal foil and braid shielding • CPR: B2ca • Length: 500 m • Color: yellow • Jacket: LSOH • Structure: 4 x 2 AWG 22/1, solid twisted pair • Physical properties: • Conductor: Bare annealed copper, solid AWG 22/1 • Insulation: SFS-PE (Foam-Skin Polyethylene) • Total number of insulated conductors: 8, twisted in 4 pairs • Color code: Blue-white, orange-white, green-white, brown-white • Individual pair shielding: Aluminum foil, providing 100 % coverage • Overall shielding: Copper braid • Outer sheath: Eca to B2ca acc. to EN 50575; LSZH • Outer sheath diameter (nominal): 0,50 mm (Eca); 0,52 mm (Dca); 0,60 mm (Cca); 0,60 (B2ca) • Color: yellow (RAL 1016) • Mechanical properties: • Tensile loading: 150N max. • Dynamic bending radius: 8x AD mm min. • Static bending radius: 4x AD mm min. • Shipping- and storage temperature range: -20 °C up to +75 °C • Operating temperature range: -20 °C up to +50 °C • Installation temperature range: 0 °C up to +50 °C • Overall diameter Simplex (nominal): 7,0 mm (Eca); 7,2 mm (Dca); 7,5 mm (Cca); 7,5 mm (B2ca) • Weight (kg/km): 49,5 kg (Eca); 51 kg (Dca), 53 kg (Cca); 53 kg (B2ca) • Electrical properties: • Impedance: 100±15 Ohm @ 4 - 1000 MHz; 100±25 OHM @ 100-600 MHz • Capacitance: 45 pF/m nominal @ 1 KHz • Capacitance unbalance (pair-ground): 1.6 pF/m max. @ 1 KHz • Insulation resistance: 5 GOhm x km min. • DC resistance: 95 Ohm/km max. (2% max. resistance unbalance) • DC loop resistance: 190 Ohm/km max. (2% max. resistance unbalance) • Voltage resistance: 72 Vdc max. • Coupling attenuation: CA-Type 1b • Signal propagation delay: 450 nS/100 m max. • Propagation delay: 10 nS/100 m max. • Separating class: “d” acc. to EN 50174-2 • NVP: 79%
