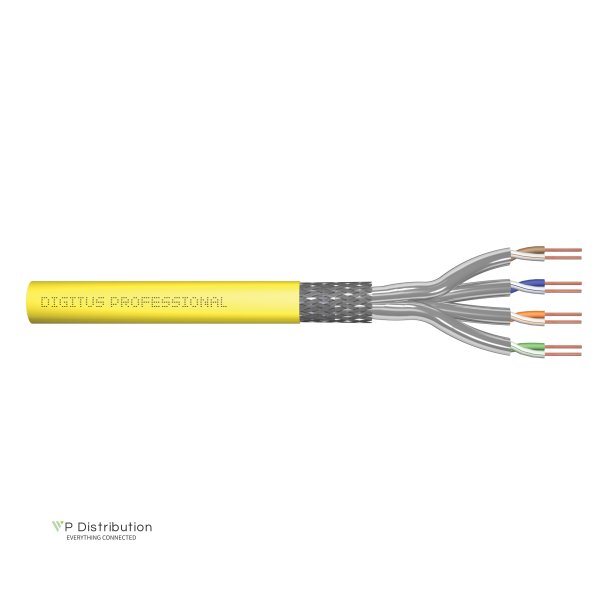

CAT 7A S-FTP installation cable, 1500 MHz Dca (EN 50575), AWG 22/1, 1000 m drum, sx, yellow

• Assortment: Twisted Pair Installation Cables • Category: CAT 7A • Shielding: S-FTP, pairs in metal foil and braid shielding • CPR: Dca • Length: 1000 m • Color: yellow • Jacket: LSOH • Structure: 4 x 2 AWG 22/1, solid twisted pair • Physical properties: • Conductor: Bare annealed copper, solid AWG 22/1 • System/s of AVCP: AVCP 3 • Insulation: SFS-PE (Foam-Skin Polyethylene) • Total number of insulated conductors: 8, twisted in 4 pairs • Color code: Blue-white, orange-white, green-white, brown-white • Individual pair shielding: Aluminum foil, providing 100 % coverage • Overall shielding: Copper tinned braid • Outer sheath: Dca-s1a d1 a1 acc. EN 50575; LSZH • Outer sheath diameter (nominal): 0,60 mm (Dca); 0,60 mm (Cca) • Outer sheath color: Yellow (RAL 1028) • Mechanical properties: • Tensile loading: 150N max. • Dynamic bending radius: 8x AD mm min. • Static bending radius: 4x AD mm min. • Shipping- and storage temperature range: -20 °C up to +60°C • Operating temperature range: -20 °C up to +60 °C • Temperature installation range: 0°C to +50°C • Overall diameter Simplex (nominal): 7,8 mm (Dca); 7,8 mm (Cca) • Weight (kg/km): 65 kg (Dca); 65 kg (Cca) • Electrical properties: • Impedance: 100±5 Ohm @ 1-1000 MHz • Capacitance: 40 pF/m nominal @ 1 KHz • Capacitance unbalance (pair-ground): 1.6 pF/m max. @ 1 KHz • Insulation resistance: 5 GOhm x km min. • DC loop resistance: 147 Ohm/Km max. (2% max. resistance unbalance) • Voltage resistance: 72 Vdc max. • Coupling attenuation: CA-Type 1b • Signal propagation delay: 450 nS/100 m max. • Propagation delay: 10 nS/100 m max. • Separating class: “d” acc. to EN 50174-2 • NVP: 79% • Flame spread: EN 60332-1-2 (LSOH-PVC) • Halogen-free, corrosiveness: EN 60754-1/2 (LSOH) • Smoke density EN 61034-2
