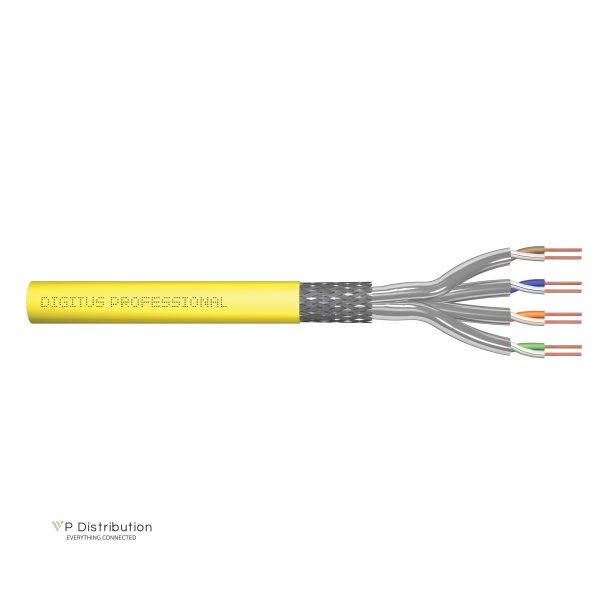

CAT 7A S-FTP installation cable, 1500 MHz Dca, AWG 22/1, 100 m ring, SX, yellow

• Assortment: Twisted Pair Installation Cables • Category: CAT 7A • Shielding: S-FTP, pairs in metal foil and braid shielding • CPR: Dca • Length: 100 m • Color: yellow • Jacket: LSOH • Structure: 4 x 2 AWG 22/1, solid twisted pair • Physical properties: • Conductor: Bare copper wire, AWG 22/1 • System(s) of assessment and verification of constancy of performance: System 3 • Insulation: SFS-PE (foamed polyethylene jacket) • Total number of insulated conductors: 8, twisted into 4 pairs • Color code: Blue-white, orange-white, green-white, brown-white • Shielding of the individual pairs: Aluminum-laminated polyester film, covers 100% • Overall shielding: tinned copper braiding • Outer sheath: Dca-s1a d1 a1acc. to EN 50575; LSZH • Outer sheath thickness (nominal): 0.60 mm (Dca); 0.60 mm (Cca) • Outer sheath color: Yellow (RAL 1028) • Mechanical properties: • Strain relief: 150N max. • Dynamic bending radius: 8x AD mm min. • Static bending radius: 4x AD mm min. • Transport and storage temperature range: -20 °C to +60 °C • Operating temperature range: -20 °C to +60 °C • Installation temperature range: 0 to +50C • Outer diameter (nominal): 7.8 mm (Dca); 7.8 mm (Cca) • Weight (kg/km): 65 kg (Dca); 65 kg (Cca) • Electrical properties: • Impedance: 100±5 Ohm @ 1-1000 MHz • Capacitance: 40 pF/m nominal @ 1 KHz • Capacitance unbalance (pair-earth): 1.6 pF/m max. @ 1 KHz • Insulation resistance: 5 GOhm x km min. • Loop resistance: 147 Ohm/Km max. (2% max. unbalanced resistance) • Operating voltage: 72 Vdc max. • Coupling attenuation: CA-Type 1b • Phase delay: 450 nS/100 m max. • Time delay: 10 nS/100 m max. • Separation class: "d" according to EN 50174-2 • NVP: 79% • Flame spread: EN 60332-1-2 (LSOH-PVC) • Halogen-free, corrosiveness: EN 60754-1/2 (LSOH) • Smoke density: EN 61034-2
