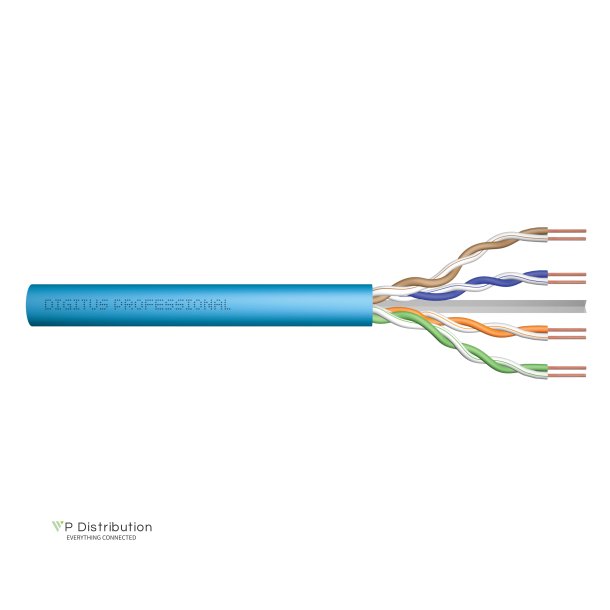

CAT 6A U-UTP installation cable, 500 MHz Dca (EN 50575), AWG 23/1, 305 m drum,

• Category: CAT 6A • Shielding: U-UTP, unshielded • CPR: Dca • Length: 305 m • Color: light-blue • Jacket: LSOH • Structure: 4 x 2 AWG 23/1, solid twisted pair • Physical properties: • Conductor: Bare annealed copper, olid AWG 23/1 • System/s of AVCP: AVCP 3 • Insulation: HD-PE (High Density Polyethylene) • Total number of insulated conductors: 8, twisted in 4 pairs • Color code: Blue-white, orange-white, green-white, brown-white • Individual pair shield: None • Overall shielding: None • Outer sheath: Dca to B2ca acc. to EN 50575; LSZH • Outer sheath diameter (nominal): 0,5 mm (Eca); 0,6 mm (Dca); 1,2 mm (Cca); 1,4 mm (B2ca) • Outer sheath color: Light blue (RAL 5012) • Mechanical properties: • Tensile loading: 150N max. • Dynamic bending radius: 8x AD mm min. • Static bending radius: 4x AD mm min. • Shipping- and storage temperature range: -20 °C up to +60 °C • Operating temperature range: -20 °C up to +75 °C • Installation temperature range: 0 °C up to +50 °C • Overall diameter Simplex (nominal): 7,1 mm (Eca); 7,3 mm (Dca); 7,4 mm (Cca); 7,6 mm (B2ca) • Weight (kg/km): 53 kg (Eca); 54 kg (Dca); 55 kg (Cca); 56 kg (B2ca) • Electrical properties: • Impedance: 100±5Ohm @ 1 - 600MHz • Capacitance: 40 pF/m nominal @ 1 KHz • Capacitance unbalance (pair-ground): 1.6 pF/m max. @ 1 KHz • Insulation resistance: 5 GOhm x km min. • DC loop resistance: 147 Ohm/km max. (2% max. resistance unbalance) • Voltage resistance: 72 Vdc max. • Coupling attenuation: CA-Type 2 • Signal propagation delay: 450 nS/100 m max. • Propagation delay: 10 nS/100 m max. • Separating class: “c” acc. to EN 50174-2 • NVP: 70%
