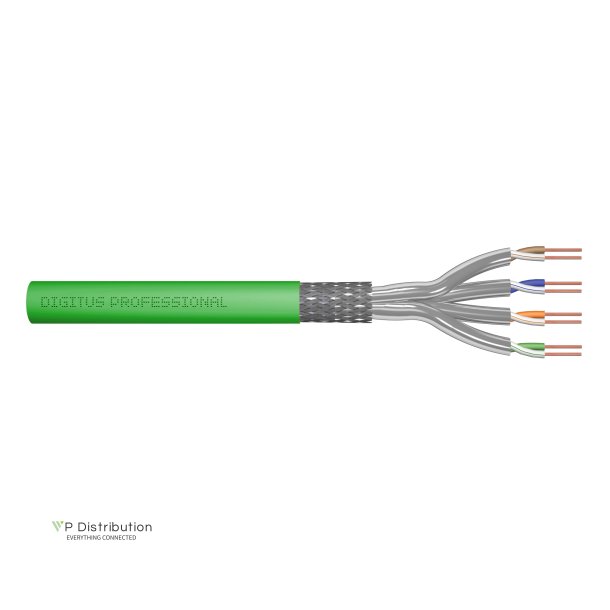

CAT 8.2 S-FTP installationcable, 2000 MHz,AWG 22/1 Dca, 500 m, drum, simplex, grün

• Assortment: Twisted Pair Installation Cables • Category: CAT 8.2 • Shielding: S-FTP, pairs in metal foil and braid shielding • CPR: Dca • Length: 500 m • Color: green • Jacket: LSOH • Structure: 4 x 2 AWG 22/1, solid twisted pair • Physical properties: • Conductor: Bare copper wire, AWG 22/1 • System(s) of assessment and verification of constancy of performance: System 3 • Insulation: SFS-PE (foamed polyethylene jacket) • Total number of insulated conductors: 8, twisted into 4 pairs • Color code: Blue-white, orange-white, green-white, brown-white • Shielding of the individual pairs: Aluminum-laminated polyester film, covers 100% • Overall shielding: Tinned copper braiding • Outer sheath: Dca-s2,d1,a1 according to EN 50575 • Outer sheath thickness (nominal): 0.55 mm nominal • Outer sheath color: Green • Mechanical properties: • Strain relief: 150N max. • Dynamic bending radius: 8x AD mm min. • Static bending radius: 4x AD mm min. • Transport and storage temperature range: -20 °C to +75 °C • Operating temperature range: -20 °C to +60 °C • Installation temperature range: 0 °C to +50 °C • Outer diameter simplex (nominal): 7.9 mm nominal (Dca) • Weight (kg/km): 65 kg/km • Electrical properties: • Impedance: 100±15Ohm @ 1 - 2000MHz • Capacitance: 99 pF/30m nominal @ 1 KHz • Capacitance unbalance (pair-earth): 99pF/30m max. @ 1 KHz • Insulation resistance: 5 GOhm x km min. • DC resistance: 2.4Ohm/30m max. (4% max. unbalanced resistance) • Loop resistance: 5.6 Ohm/24m max. (3% max. unbalanced resistance) • Operating voltage: 72 Vdc max. • Coupling attenuation: CA-Type 1 • Phase delay: 171 nS/30 m max. • Time delay: 13.5 nS/130 m max. • Separation class: "d" according to EN 50174-2 • NVP: 79%
