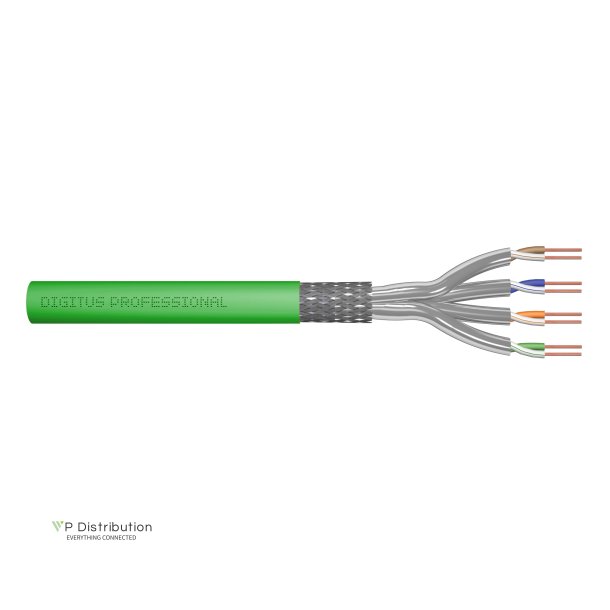

CAT 8.2 S-FTP install. cable, 2000 MHz, AWG 22/1 Dca, 100 m, ring, simplex, green

• Category: CAT 8.2 • Shielding: S-FTP, pairs in metal foil and braid shielding • CPR: Dca • Length: 100 m • Color: green • Jacket: LSOH • Structure: 4 x 2 AWG 22/1, solid twisted pair • Physical properties: • Conductor: Bare annealed copper, solid AWG 22/1 • Insulation: SFS-PE (foamed polyethylene sheath) • Total number of insulated conductors: 8, twisted in 4 pairs • Color code: Blue-white, orange-white, green-white, brown-white • Shielding of the individual pairs: Aluminum-covered polyester film, 100% coverage • Overall shielding: Tinned copper wire braid • Outer sheath: Dca acc. to EN 50575; LSZH • Outer sheath diameter (nominal): 0.55 mm nominal • Outer sheath color: yellow • Mechanical properties: • Tensile loading: 150N max. • Dynamic bending radius: 8x AD mm min. • Static bending radius: 4x AD mm min. • Transport and storage temperature range: -20 °C to +75 °C • Operating temperature range: -20 °C bis +60 °C • Installation temperature range: 0 °C to +50 °C • Overall diameter Simplex (nominal): 7.9 mm nominal (Dca) • Weight (kg/km): 65 kg/km • Electrical properties: • Impedance: 100±15 Ohm @ 1 - 2000MHz • Capacitance: 99 pF/30m nominal @ 1 KHz • Capacitance unbalance (pair-ground): Is not specified • Insulation resistance: 5 GOhm x km min. • DC resistance: 2.4Ohm/30m max. (4% max. resistance unbalance) • DC loop resistance: 5.6 Ohm/24m max. (3% max. resistance unbalance) • Voltage resistance: 72 Vdc max. • Coupling attenuation: CA-Type 1 • Signal propagation delay: 171 nS/30 m max. • Propagation delay: 13,5 nS/130 m max. • Separating class: „d“ acc. to EN 50174-2 • NVP: 79%
