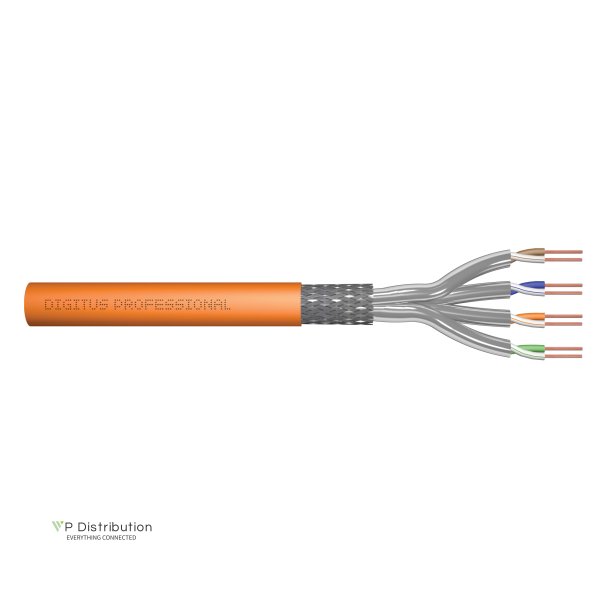

CAT 7 S-FTP installation cable, 1200 MHz B2ca (EN 50575), AWG 23/1, 500 m drum,

• Assortment: Twisted Pair Installation Cables • Category: CAT 7 • Shielding: S-FTP, pairs in metal foil and braid shielding • CPR: B2ca • Length: 500 m • Color: orange • Jacket: LSOH • Structure: 4 x 2 AWG 23/1, solid twisted pair • Physical properties: • Conductor: Bare copper wire, AWG 23/1 • System(s) of assessment and verification of constancy of performance: System 3 • Insulation: SFS-PE (foamed polyethylene jacket) • Total number of insulated conductors: 8, twisted into 4 pairs • Color code: Blue-white, orange-white, green-white, brown-white • Shielding of the individual pairs: aluminum-laminated polyester film, covers 100% • Overall shielding: copper braiding • Outer sheath: B2ca according to EN 50575; LSZH • Outer sheath thickness (nominal): 0.50 mm (Eca); 0.52 mm (Dca); 0.60 mm (Cca); 0.60 (B2ca) • Color: Orange (RAL 2008) • Mechanical properties: • Strain relief: 135N max. • Dynamic bending radius: 8x AD mm min. • Static bending radius: 4x AD mm min. • Transport and storage temperature range: -20 °C to +60 °C • Operating temperature range: -20 °C to +50 °C • Installation temperature range: 0 °C to +50 °C • Electrical properties: • Impedance: 100±15 Ohm @ 4 - 1000 MHz; 100±25 OHM @ 100-600 MHz • Capacitance: 45pF/m nom. at 1KHz • Capacitance: 40 pF/m nominal @ 1 KHz • Insulation resistance: 5 GOhm x km min. • DC resistance: 95 Ohm/km max. (2% max. unbalanced resistance) • Loop resistance: 190 Ohm/km max. (2% max. unbalanced resistance) • Operating voltage: 72 Vdc max. • Coupling attenuation: CA-Type 1b • Phase delay: 450 nS/100 m max. • Time delay: 10 nS/100 m max. • Separation class: "d" according to EN 50174-2 • NVP: 79% • Flame spread: EN EN 60332-1-2 (LSOH-PVC) • Halogen-free, corrosivity: EN 60754-1/2 (LSOH) • Smoke density EN 61034-2
