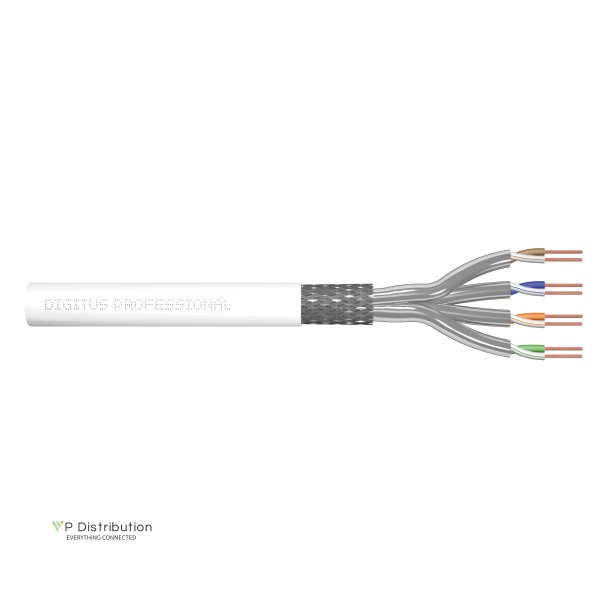

CAT 7 S-FTP installation cable, 305 m, box, 1200MH AWG 26/1, 600 MHz, Dca, LSZH-3, color RAL9003

• Assortment: Twisted Pair Installation Cables • Category: CAT 7 • Shielding: S-FTP, pairs in metal foil and braid shielding • CPR: Dca • Length: 305 m • Color: white • Jacket: LSOH • Structure: 4 x 2 AWG 26/1, solid twisted pair • Physical properties: • Conductor: Bare copper wire, AWG 26/1 • Insulation: SFS-PE (foamed polyethylene jacket) • Total number of insulated conductors: 8, twisted into 4 pairs • Color code: Blue-white, orange-white, green-white, brown-white • Shielding of the individual pairs: Aluminum-laminated polyester film, covers 100% • Overall shielding: copper braiding • Outer sheath: Dca acc. to EN 50575; LSZH • Outer sheath thickness (nominal): 0.52 mm nominal • Outer casing color: White (RAL 9003) • Mechanical properties: • Strain relief: 150N max. • Dynamic bending radius: 8x AD mm min. • Static bending radius: 4x AD mm min. • Transport and storage temperature range: -20 °C to +60 °C • Operating temperature range: -20 °C to +50 °C • Installation temperature range: 0 °C to +50 °C • Outer diameter simplex (nominal): 5.7 mm nominal • Weight (kg/km): 35 kg/km • Electrical properties: • Impedance: 100±15Ohm @ 4 - 100MHz; 100±25Ohm @ 100 - 600MHz • Capacitance: 45 pF/m nominal @ 1 KHz • Insulation resistance: 5 GOhm x km min. • DC resistance: 95 Ohm/km max. (2% max. unbalanced resistance) • Loop resistance: 190 Ohm/Km max. (2% max. unbalanced resistance) • Operating voltage: 72 Vdc max. • Coupling attenuation: CA-Type 1b • Phase delay: 450 nS/100 m max. • Time delay: 25 nS/100 m max. • Separation class: "d" according to EN 50174-2 • Maximum insert length: 60 m • NVP: 79% • Flame spread: EN EN 60332-1-2 (LSOH-PVC) • Halogen-free, corrosiveness: EN 60754-1/2 (LSOH) • Smoke density EN 61034-2
