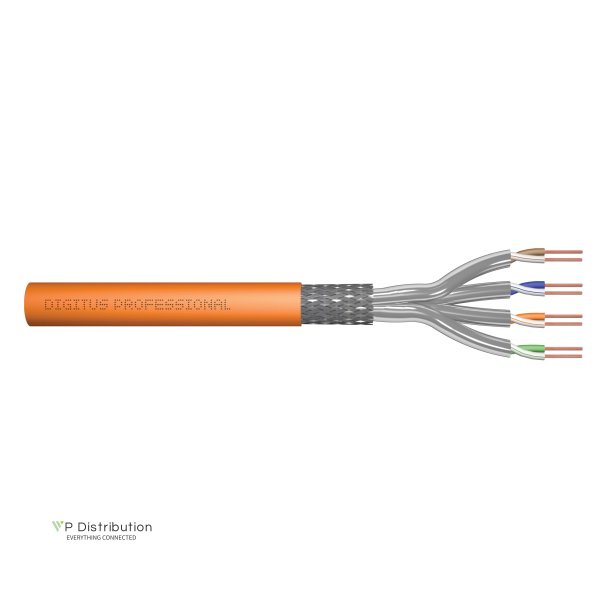

CAT 7 S-FTP installationcable, 1200 MHz Dca (EN 50575), AWG 23/1, 50m ring,SX, orange

CAT 7 S-FTP installationcable, 1200 MHz Dca (EN 50575), AWG 23/1, 50m ring,SX, orange

Du skal være logget ind for at kunne lave bestillinger

Varenr.: DK-1743-VH-050
Leveringstid: Cirka. 2-4 dage i leveringstid
The Digitus® Cat.7 S/FTP installation cable features the following cable structure 4x2x AWG23/1 and reaches a transmission frequency of up to 1200 MHz. The halogen-free cable sheath complies with the IEC 60332-3-24 standard, FRNC-C, LSZH-3, and BauPVO Euroclass Dca. The cable is suitable for structured building cabling in secondary and tertiary areas. Compliant with ISO/IEC 11801, DIN EN 50173, and DIN EN 50288-4-1 standards.
  • Beskrivelse
    • Assortment: Twisted Pair Installation Cables • Category: CAT 7 • Shielding: S-FTP, pairs in metal foil and braid shielding • CPR: Dca • Length: 50 m • Color: orange • Jacket: LSOH • Structure: 4 x 2 AWG 23/1, solid twisted pair • Conductor: Bare copper wire, AWG 23/1 • System(s) of assessment and verification of constancy of performance: System 3 • Insulation: SFS-PE (foamed polyethylene jacket) • Total number of insulated conductors: 8, twisted into 4 pairs • Color code: Blue-white, orange-white, green-white, brown-white • Shielding of the individual pairs: aluminum-laminated polyester film, covers 100% • Overall shielding: copper braiding • Outer sheath: Eca to B2ca in accordance with EN 50575; LSZH • Outer sheath thickness (nominal): 0.50 mm (Eca); 0.52 mm (Dca); 0.60 mm (Cca); 0.60 (B2ca) • Color: Orange (RAL 2008) • Mechanical properties: • Strain relief: 150N max. • Dynamic bending radius: 8x AD mm min. • Static bending radius: 4x AD mm min. • Transport and storage temperature range: -20 °C to +75 °C • Operating temperature range: -20 °C to +50 °C • Installation temperature range: 0 °C to +50 °C • Outer diameter simplex (nominal): 7.0 mm (Eca); 7.2 mm (Dca); 7.5 mm (Cca); 7.5 mm (B2ca) • Weight (kg/km): 49.5 kg (Eca); 51 kg (Dca), 53 kg (Cca); 53 kg (B2ca) • Electrical properties: • Impedance: 100±15 Ohm @ 4 - 1000 MHz; 100±25 OHM @ 100-600 MHz • Capacitance: 45pF/m nom. at 1KHz • Capacitance: 40 pF/m nominal @ 1 KHz • Insulation resistance: 5 GOhm x km min. • DC resistance: 95 Ohm/km max. (2% max. unbalanced resistance) • Loop resistance: 190 Ohm/km max. (2% max. unbalanced resistance) • Operating voltage: 72 Vdc max. • Coupling attenuation: CA-Type 1b • Phase delay: 450 nS/100 m max. • Time delay: 10 nS/100 m max. • Separation class: "d" according to EN 50174-2 • NVP: 79% • Assortment: Twisted pair installation cable • Length: 50 m • Category: CAT 7 • Color: orange • CPR: Dca • Coat: LSOH • Shielding: S-FTP, pairs shielded in metal foil and braid • Cable construction: 4 x 2 AWG 23/1, solid twisted pair
  • Specifikationer
    Farve Orange
    Længde 50m
    Connector 1 RJ45
    Connector 2 RJ45
    Cable Standard Cat7
