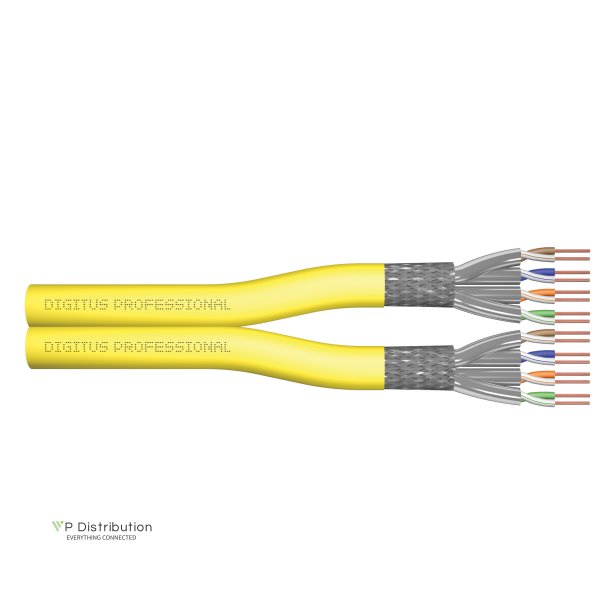

CAT 7A S-FTP installation cable, 1500 MHz Dca (EN 50575), AWG 22/1, 100 m ring, DX, Yellow

• Physical properties: • Basic conductor: Solid AWG 22/1, bare annealed copper, diameter 0.62 mm nominal • System/s of AVCP: AVCP 3 • Insulation: SFS-PE (Foam-Skin Polyethylene) • Total number of insulated conductors: 8, twisted in 4 pairs • Color code: blue-white, orange-white, green-white, brown-white • Individual pair shielding: Aluminum foil, providing 100 % coverage • Overall shielding: Copper wire braid • Outer jacket: Halogen-free (FRNC-C/LSZH-3) • Outer jacket diameter: 0.6 mm nominal • Color: Yellow (RAL 1016) • Length: 100 m • Mechanical properties: • Tensile loading: 150N max. • Dynamic bending radius: 8x AD mm min. • Static bending radius: 4x AD mm min. • Shipping- and storage temperature range: -20 °C up to +60 °C • Operating temperature range: -20 °C up to +60 °C • Temperature installation range: 0°C to +50°C • Overall diameter: 8.0 mm nominal • Flame retardancy: IEC 60332-3-24 • Halogen-free & smoke-proof: IEC 60754-2 & IEC 61034 • Fire load: 700 Mj/km • Electrical properties: • Mean impedance: 100±5 Ohm @ 1-600 MHz • Capacitance: 40 pF/m nominal @ 1 KHz • Capacitance unbalance (pair-ground): 1.6 pF/m max. @ 1 KHz • Insulation resistance: 5 GOhm x km min. • DC loop resistance: 147 Ohm/Km max. (2% max. resistance unbalance) • Voltage resistance: 72 Vdc max. • Coupling attenuation: Grade 1 (CA-Type 1b) • Propagation delay: 10 nS/100 m max. • Signal propagation delay: 450 nS/100 m max. • Separating class: “d” acc. to EN 50174-2 • NVP: 75% • Flame spread: EN 60332-1-2 (LSOH-PVC) • Halogen-free, corrosiveness: EN 60754-1/2 (LSOH) • Smoke density: EN 61034-2
