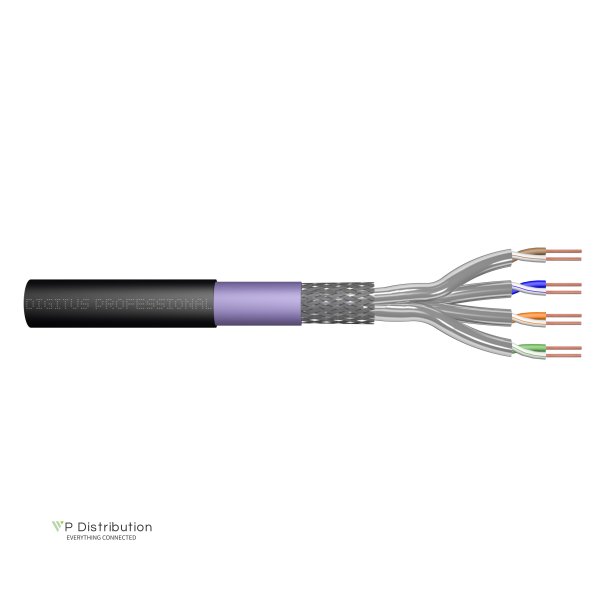

CAT 7 S-FTP outdoor installation cable, 1200 MHz PE, inner Eca (LSZH-1), AWG 23/1,100m, sx, bl&pu

• Assortment: Twisted Pair Installation Cables • Category: CAT 7 • Shielding: S-FTP, pairs in metal foil and braid shielding • CPR: Eca • Length: 100 m • Color: black • Jacket: PE • Structure: 4 x 2 AWG 23/1, solid twisted pair • Physical properties: • Conductor: Bare annealed copper, solid AWG 23/1 • Insulation: SFS-PE (Foam-Skin Polyethylene) • Total number of insulated conductors: 8, twisted in 4 pairs • Color code: Blue-white, orange-white, green-white, brown-white • Individual pair shielding: Aluminum foil, providing 100 % coverage • Overall shielding: Copper wire braid • Outer sheath: PE (Polyethylene); UV resistant • Outer sheath diameter (nominal): 0.50 mm nominal • Outer sheath color: Black (RAL 9005) • Mechanical properties: • Tensile loading: 150N max. • Dynamic bending radius: 8x AD mm min. • Static bending radius: 4x AD mm min. • Shipping- and storage temperature range: -20 °C up to +60 °C • Operating temperature range: -50 °C up to +60 °C • Installation temperature range: 0 °C up to +60 °C • Overall diameter Simplex (nominal): 8.5 mm nominal (Eca) • Weight (kg/km): 66.5 kg/km • Electrical properties: • Impedance: 100±5 Ohm @ 4-100 MHz; 100±25 Ohm @ 100-1200 MHz • Capacitance: 45 pF/m nominal @ 1 KHz • Capacitance unbalance (pair-ground): 1.6 pF/m max. @ 1 KHz • Insulation resistance: 5 GOhm x km min. • DC resistance: 95 Ohm/km max. (2% max. resistance unbalance) • DC loop resistance: 190 Ohm/km max. (2% max. resistance unbalance) • Voltage resistance: 72 Vdc max. • Coupling attenuation: CA-Type 1b • Signal propagation delay: 450 nS/100 m max. • Delay difference: 10 nS/100 m max. • Separating class: “d” acc. to EN 50174-2 • NVP: 79%
