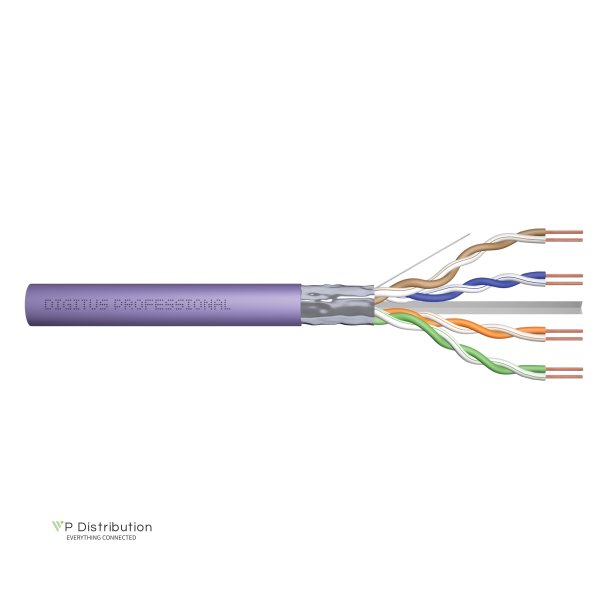

CAT 6 F-UTP installation cable, 250 MHz Eca (EN 50575), AWG 23/1, 305 m drum, sx, purple

• Assortment: Twisted Pair Installation Cables • Category: CAT 6 • Shielding: F-UTP, foil shielding • CPR: Eca • Length: 305 m • Color: violet • Jacket: LSOH • Structure: 4 x 2 AWG 23/1, solid twisted pair • Physical properties: • Basic conductor: Solid AWG 23/1, bare annealed copper, diameter 0.57 mm nominal • System/s of AVCP: AVCP 3 • Insulation: HD-PE • Total number of insulated conductors: 8, twisted in 4 pairs • Color code: blue-white, orange-white, green-white, brown-white • Individual pair shield: None • Overall shielding: Aluminum foil, providing 100% coverage, drain wire • Outer jacket: Halogen-free (FRNC-B/LSZH-1) • Outer jacket diameter: 0.50 mm nominal • Color: Purple (RAL 4005) • Mechanical properties: • Tensile loading: 150N max. • Dynamic bending radius: 8x AD mm min. • Static bending radius: 4x AD mm min. • Shipping- and storage temperature range: -20 °C up to +60 °C • Operating temperature range: -20 °C up to +75 °C • Installation temperature range: 0 °C up to +50 °C • Overall diameter: 7.0 mm nominal • Flame retardancy: IEC 60332-1 • Halogen-free & smoke-proof: IEC 60754-2 & IEC 61034 • Fire load: 295 Mj/km • Electrical properties: • Mean impedance: 100±5Ohm at 1MHz - 600MHz • Capacitance: 48 pF/m nominal @ 800 Hz • Capacitance unbalance (pair-ground): 1.5 pF/m max. @ 1 KHz • Insulation resistance: 5 GOhm x km min. • DC loop resistance: 147 Ohm/km max. (2% max. resistance unbalance) • Voltage resistance: 72 Vdc max. • Coupling attenuation: 40 dB • Signal propagation delay: 535 nS/100 m max. • Propagation delay: 20 nS/100 m max. • NVP: 69%
