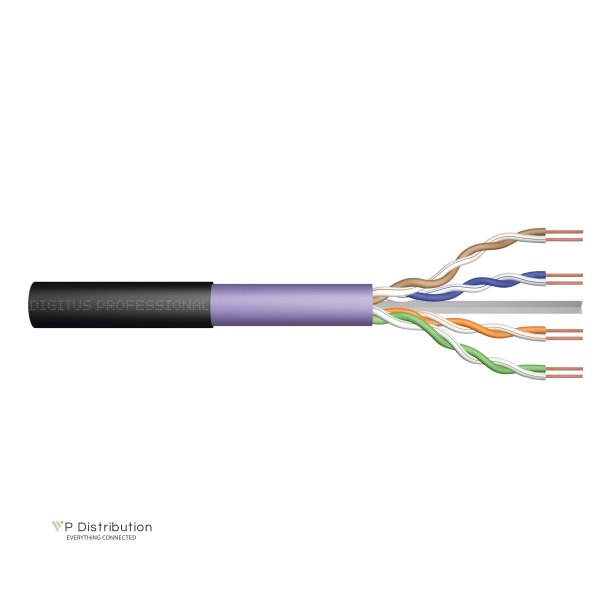

CAT 6 U-UTP outdoor installation cable, 250 MHz inner Eca (LSZH-1), AWG 23/1, 500m drum, sx, bl/pu

• Assortment: Twisted Pair Installation Cables • Category: CAT 6 • Shielding: U-UTP, unshielded • CPR: Eca • Length: 500 m • Color: violet • Jacket: LSOH • Structure: 4 x 2 AWG 23/1, solid twisted pair • Physical properties: • Conductor: Bare annealed copper, solid AWG 23/1 • Insulation: HD-PE (High Density Polyethylene) • Total number of insulated conductors: 8, twisted in 4 pairs • Color code: Blue-white, orange-white, green-white, brown-white • Individual pair shielding: None • Overall shielding: None • Outer sheath: Eca acc. to EN 50575; LSZH • Outer sheath diameter (nominal): 0,5 mm (Eca) • Outer sheath color: Purple (Eca jacket), black (PE jacket) • Mechanical properties: • Tensile loading: 150N max. • Dynamic bending radius: 8x AD mm min. • Static bending radius: 4x AD mm min. • Shipping- and storage temperature range: -20 °C up to +60 °C • Operating temperature range: -20 °C up to +75 °C • Installation temperature range: 0 °C up to +50 °C • Overall diameter (nominal): 6,8 mm (Eca) • Weight: (kg/hm): 48 kg (Eca) • Impedance: 100 ± 5 Ohm @ 1-250 MHz • Capacitance: 40 pF/m nominal @ 800 MHz • Capacitance unbalance (pair-ground): 1,5 pF/m max. @ 1 KHz • Insulation resistance: 5 GOhm x km min. • DC resistance: 72 Ohm/km max. (2% max. resistance unbalance) • DC loop resistance: 147 Ohm/km max. (2% max. resistance unbalance) • Voltage resistance: 72 Vdc max. • Coupling attenuation: CA-Type 3 • Signal propagation delay: 535 nS/100 m max. • Propagation delay: 20 nS/100 m max. • Separating class: ,,b" acc. to EN 50174-2 • NVP: 69%
